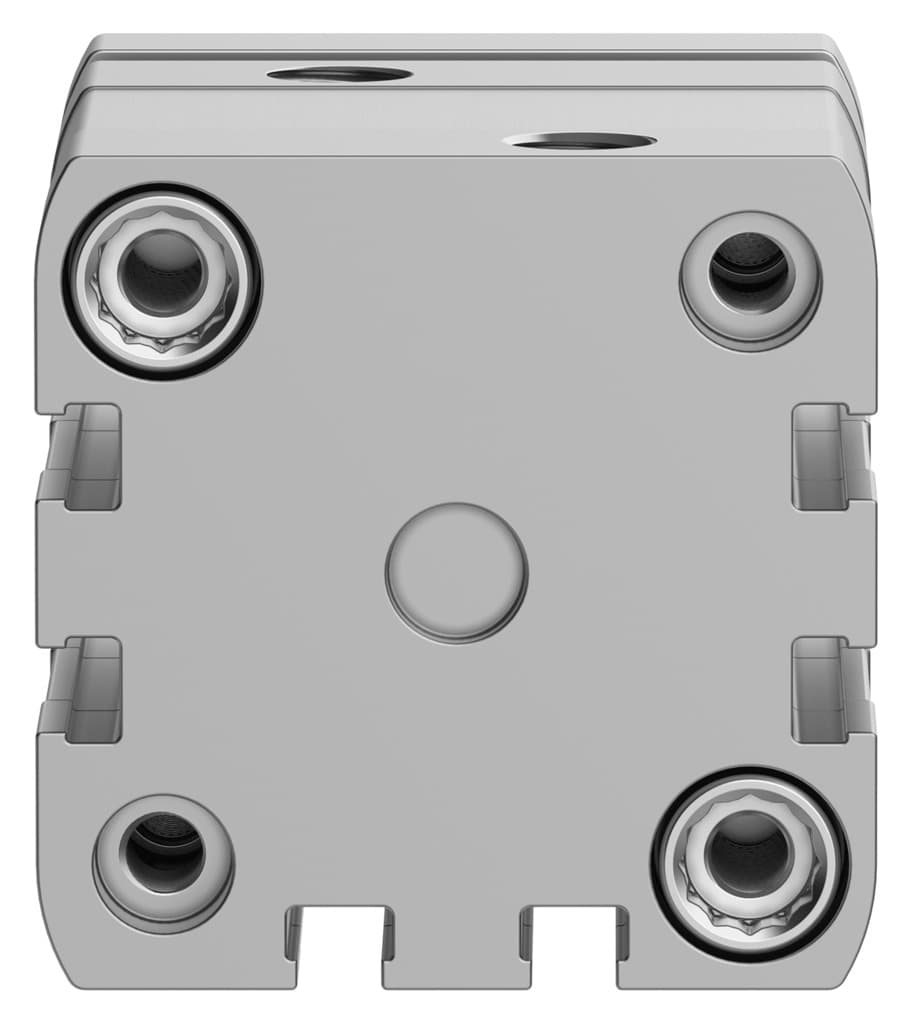

Festo ADNGF-40-10-PPS-A Compact Cylinder - High Precision & Reliability

Selling Points

1Compact Design: Ideal for space-constrained applications with a stroke of 10 mm and piston diameter of 40 mm.
2Self-Adjusting Cushioning: Ensures smooth operation with self-adjusting pneumatic end-position cushioning.
3Double-Acting Operation: Allows for both extension and retraction strokes, enhancing versatility in automation systems.
4Corrosion Resistance: Moderately resistant to corrosion with a CRC class of 2, suitable for various industrial environments.
5Compliant with ISO Standards: Meets ISO 21287 and ISO 8573-1:2010 standards for pneumatic systems, ensuring reliability and performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	40 mm
Based on norm	ISO 21287	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Protection against torsion/guide	Guide rod with yoke
Operating pressure	1.4bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	1.7J
Cushioning length	5mm	Theoretical force at 6 bar, retracting	686N
Theoretical force at 6 bar, advancing	754N	Moving mass	201g
Product weight	488g	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
End plate material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	574031

Specifications may be subject to change without notice
