Product Model

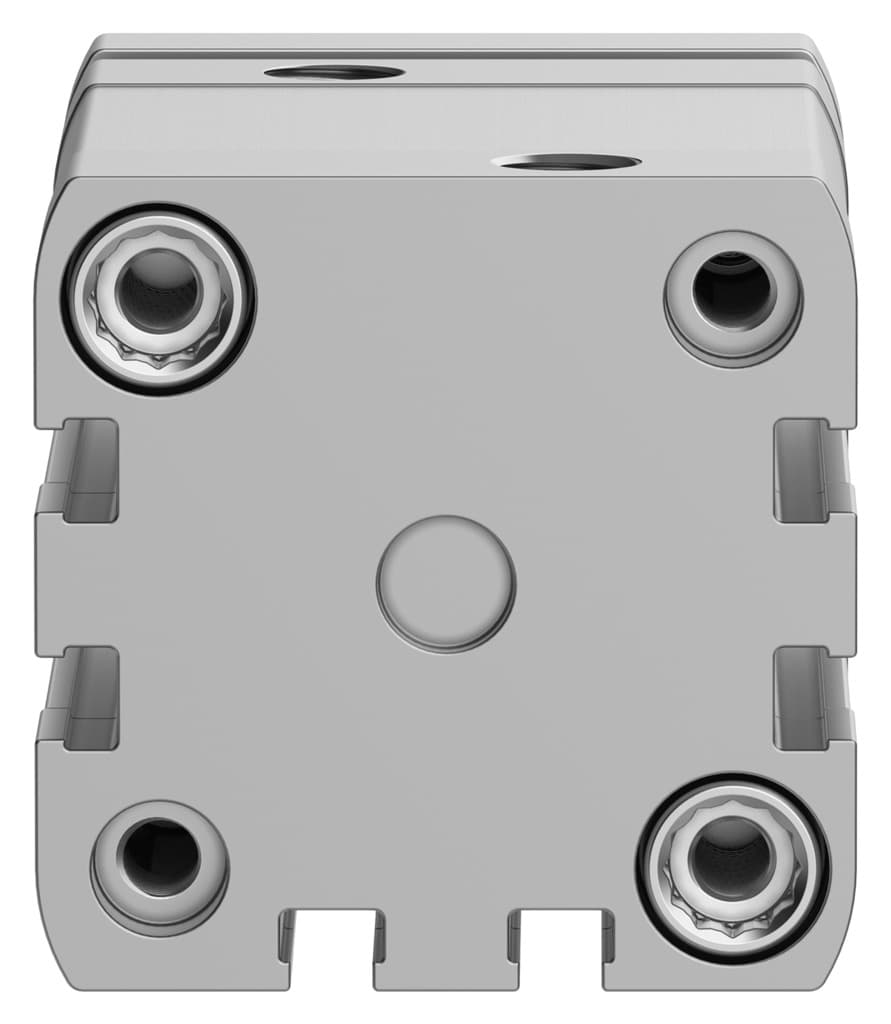

adngf-40-25-pps-a
Selling Points
- 1Compact design with 25 mm stroke and 40 mm piston diameter.
- 2Self-adjusting pneumatic end-position cushioning for enhanced performance.
- 3Double-acting operation for precise control in various applications.
- 4Compatible with compressed air as per ISO 8573-1:2010 [7:4:4] for reliable operation.
- 5Moderate corrosion resistance and durable materials for long-lasting use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 40 mm |
Based on norm | ISO 21287 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1.4bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1.7J |
Cushioning length | 5mm | Theoretical force at 6 bar, retracting | 686N |
Theoretical force at 6 bar, advancing | 754N | Moving mass | 226g |
Product weight | 558g | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Flange screws material | Steel |
Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 574034 |
Specifications may be subject to change without notice
