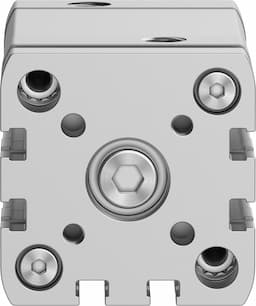

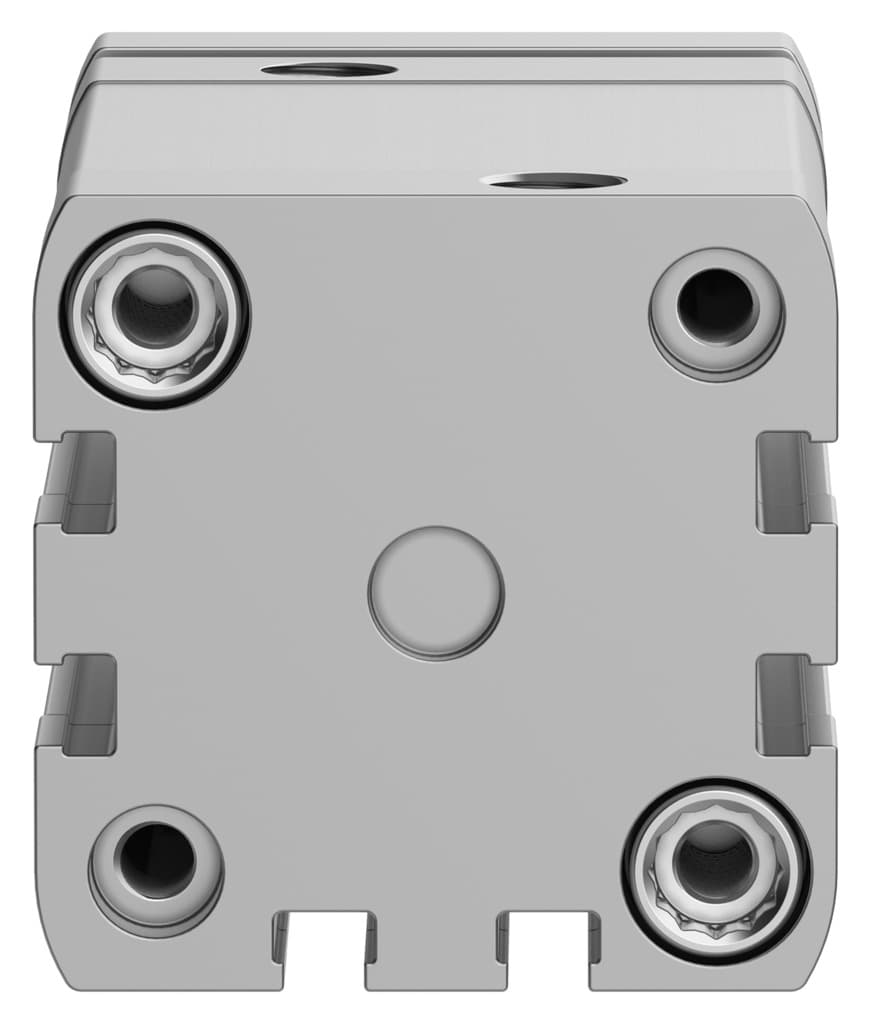

Festo ADNGF-40-40-PPS-A Compact Cylinder for Precision Pneumatics

Selling Points

1The Festo ADNGF-40-40-PPS-A cylinder is designed for compact installations, making it perfect for space-constrained applications.
2Equipped with PPS self-setting pneumatic end position dampening, ensuring smooth and controlled movements.
3Meets the international standard ISO 21287, ensuring high-quality and reliable performance.
4Can be mounted in any position, offering flexibility in setup and integration.
5Constructed with high-alloy steel piston rod and smooth anodized aluminum cylinder barrel, ensuring durability and corrosion resistance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	40mm	Piston diameter	40 mm
Based on norm	ISO 21287	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Protection against torsion/guide	Guide rod with yoke
Operating pressure	1.4bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	1.7J
Cushioning length	5mm	Theoretical force at 6 bar, retracting	686N
Theoretical force at 6 bar, advancing	754N	Moving mass	251g
Product weight	627g	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
End plate material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	574036

Specifications may be subject to change without notice
