Product Model

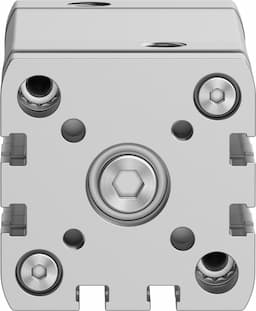

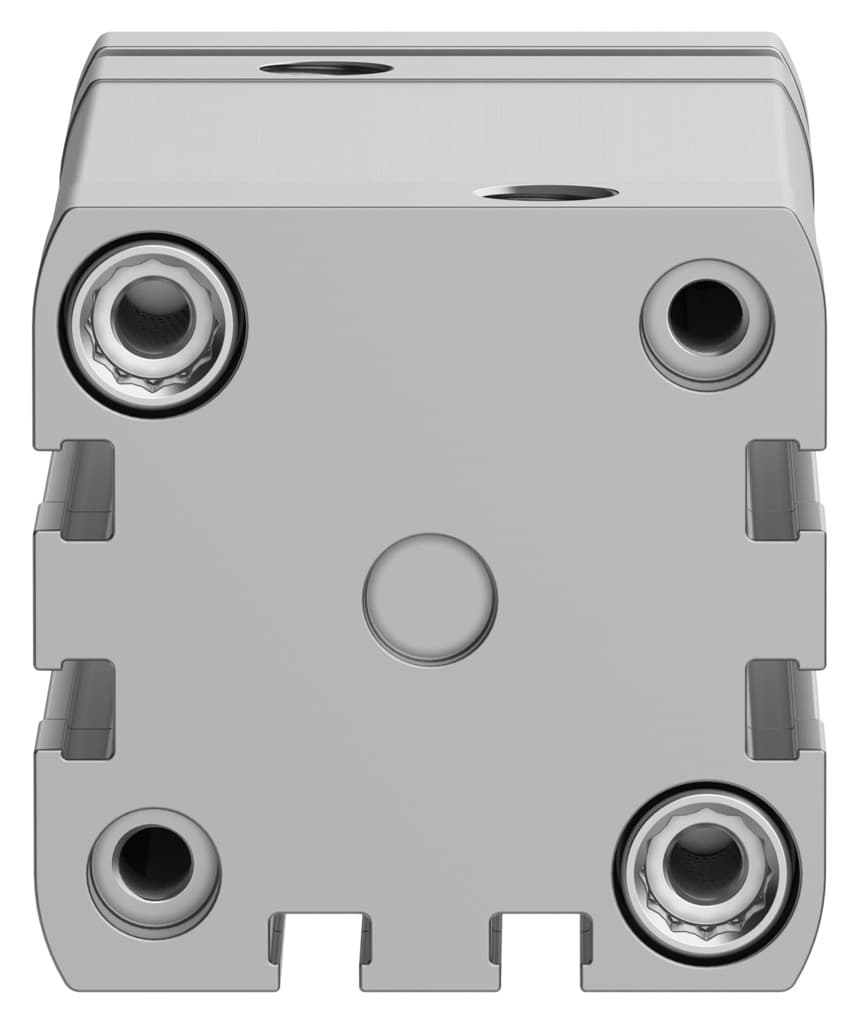

adngf-40-50-pps-a
Selling Points
- 1Compact Design: The ADNGF-40-50-PPS-A is designed for space-efficient applications with a stroke of 50 mm and a piston diameter of 40 mm.
- 2Self-Adjusting Cushioning: Equipped with self-adjusting pneumatic end-position cushioning for smooth operation and reduced wear.
- 3High-Alloy Steel Piston Rod: Ensures durability and resistance to corrosion, making it suitable for demanding industrial environments.
- 4Robust Corrosion Resistance: Classified as CRC 2, offering moderate corrosion stress resistance for reliable performance in various conditions.
- 5Double-Acting Operation: Designed for double-acting operation, allowing for both forward and reverse motion with compressed air as per ISO 8573-1:2010 [7:4:4].
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 50mm | Piston diameter | 40 mm |
Based on norm | ISO 21287 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1.4bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1.7J |
Cushioning length | 5mm | Theoretical force at 6 bar, retracting | 686N |
Theoretical force at 6 bar, advancing | 754N | Moving mass | 268g |
Product weight | 673g | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Flange screws material | Steel |
Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 574037 |
Specifications may be subject to change without notice
