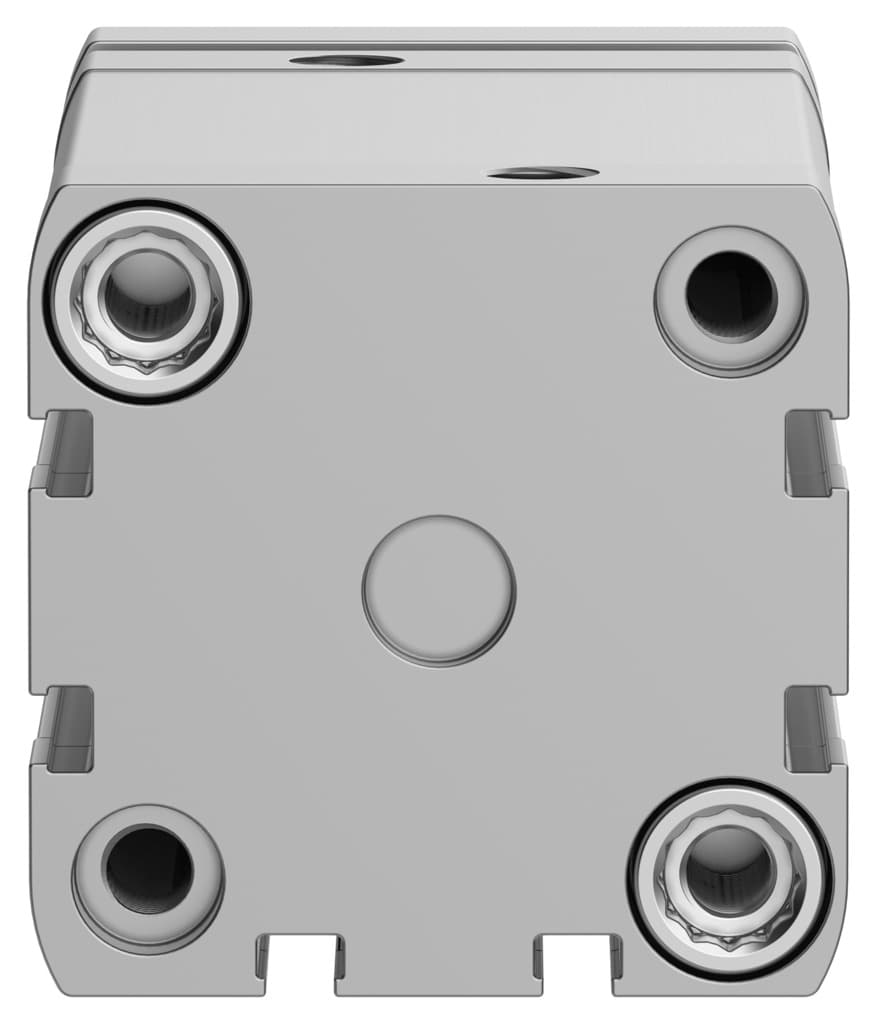

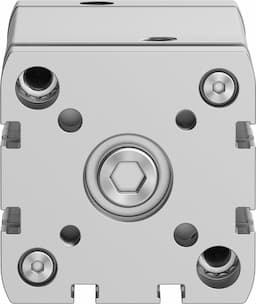

Festo ADNGF-50-60-PPS-A Compact Cylinder | High Load Capacity & Self-Adjusting Cushioning

Selling Points

1High Load Capacity: Designed with guide rods and yoke plate for increased load capacity.
2Self-Adjusting Cushioning: PPS: Self-adjusting pneumatic end-position cushioning ensures smooth operation.
3Versatile Assembly: Can be assembled in any position, making it versatile for various applications.
4Position Sensing Capable: Suitable for use with proximity sensors for precise position detection.
5Compliant with ISO Standards: Meets ISO 21287 standards for reliability and performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	60mm	Piston diameter	50 mm
Based on norm	ISO 21287	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Protection against torsion/guide	Guide rod with yoke
Operating pressure	1.4bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	2.8J
Cushioning length	6mm	Theoretical force at 6 bar, retracting	1057N
Theoretical force at 6 bar, advancing	1178N	Moving mass	476g
Product weight	1052g	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
End plate material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	574047

Specifications may be subject to change without notice
