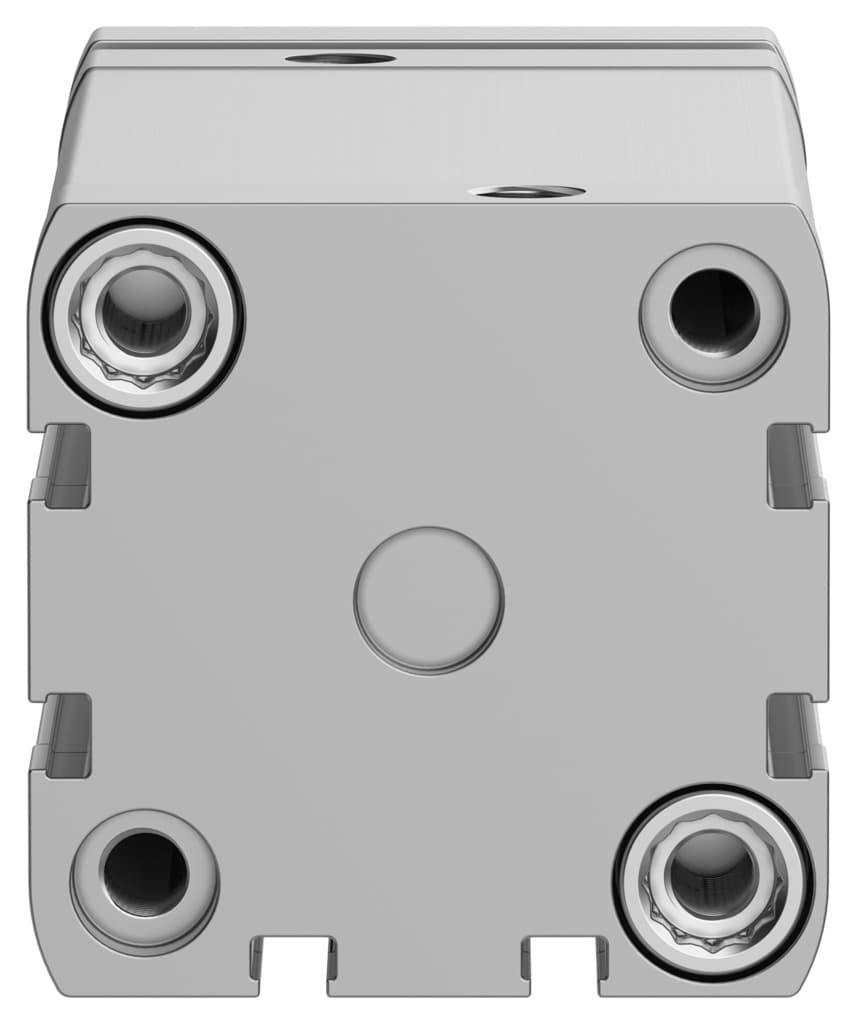

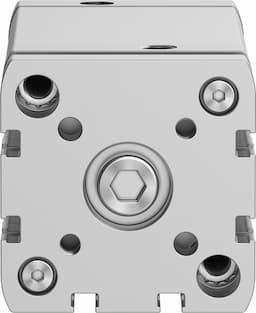

Festo ADNGF-50-80-PPS-A Compact Pneumatic Cylinder

Selling Points

1Compact Design: Ideal for space-constrained applications with a 50mm piston diameter and 80mm stroke.
2Self-Adjusting Cushioning: Features self-adjusting pneumatic end-position cushioning for smooth operation.
3ISO 21287 Compliance: Meets the standard for precision and reliability in pneumatic systems.
4Versatile Mounting: Can be mounted in any position, offering flexibility in installation.
5High-Performance: Designed for double-acting mode with compressed air to ISO 8573-1:2010, ensuring robust operation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	80mm	Piston diameter	50 mm
Based on norm	ISO 21287	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Protection against torsion/guide	Guide rod with yoke
Operating pressure	1.4bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	2.8J
Cushioning length	6mm	Theoretical force at 6 bar, retracting	1057N
Theoretical force at 6 bar, advancing	1178N	Moving mass	532g
Product weight	1178g	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
End plate material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	574048
