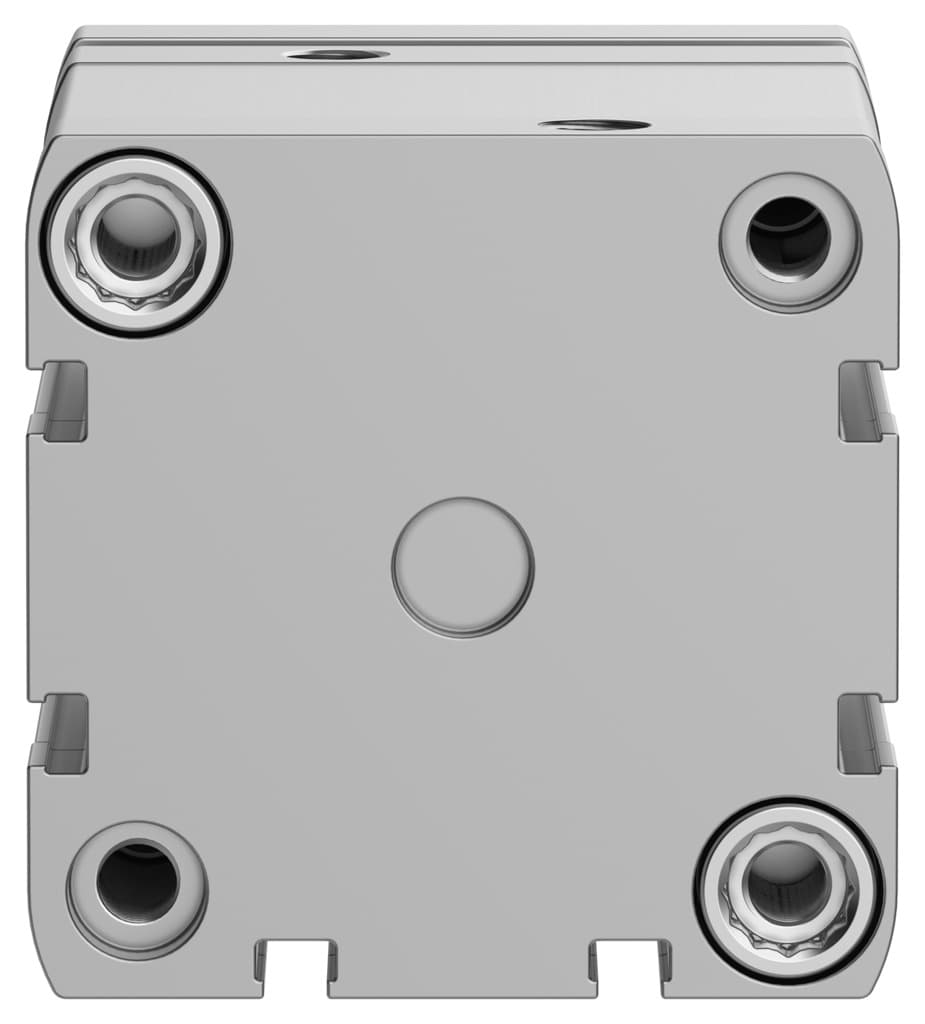

Festo ADNGF-63-30-PPS-A Compact Cylinder for Precision Applications

Selling Points

1High Precision Stroke: 30 mm stroke length for precise control in tight spaces.
2Self-Adjusting Cushioning: Pneumatic end-position cushioning ensures smooth operation and reduces wear.
3Flexible Mounting: Suitable for any mounting position, offering versatility in installation.
4Robust Construction: Made from high-alloy steel piston rod and wrought aluminum alloy barrel for durability.
5Compressed Air Operation: Compatible with ISO 8573-1:2010 compressed air standards, ensuring reliable performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	30mm	Piston diameter	63 mm
Based on norm	ISO 21287	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Protection against torsion/guide	Guide rod with yoke
Operating pressure	1.4bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	4.8J
Cushioning length	7mm	Theoretical force at 6 bar, retracting	1750N
Theoretical force at 6 bar, advancing	1870N	Moving mass	502g
Product weight	1162g	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
End plate material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	574053
