Product Model

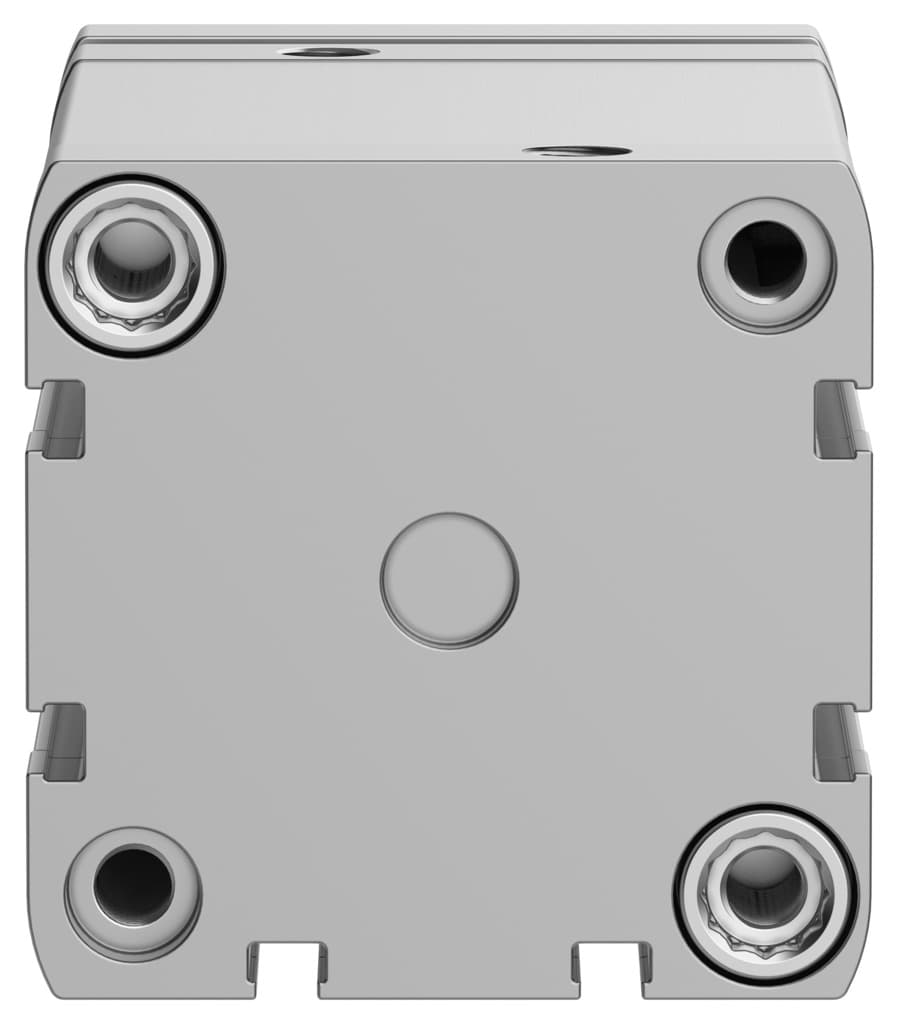

adngf-63-60-pps-a
Selling Points
- 1High-Performance Pneumatic Solution: Designed for demanding industrial applications with a stroke of 60 mm and piston diameter of 63 mm.
- 2Self-Adjusting Cushioning: Equipped with PPS self-adjusting pneumatic end-position cushioning for enhanced durability and performance.
- 3Double-Acting Operation: Capable of both advancing and retracting strokes, ensuring efficient operation in various applications.
- 4Compliant with ISO Standards: Meets ISO 21287 standards, ensuring reliability and consistency in pneumatic systems.
- 5Moderate Corrosion Resistance: Classified as CRC 2, providing moderate corrosion resistance for use in diverse industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 60mm | Piston diameter | 63 mm |
Based on norm | ISO 21287 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1.4bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 4.8J |
Cushioning length | 7mm | Theoretical force at 6 bar, retracting | 1750N |
Theoretical force at 6 bar, advancing | 1870N | Moving mass | 587g |
Product weight | 1733g | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Flange screws material | Steel |
Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 574056 |
Specifications may be subject to change without notice
