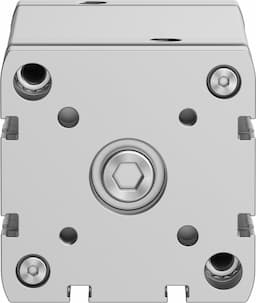

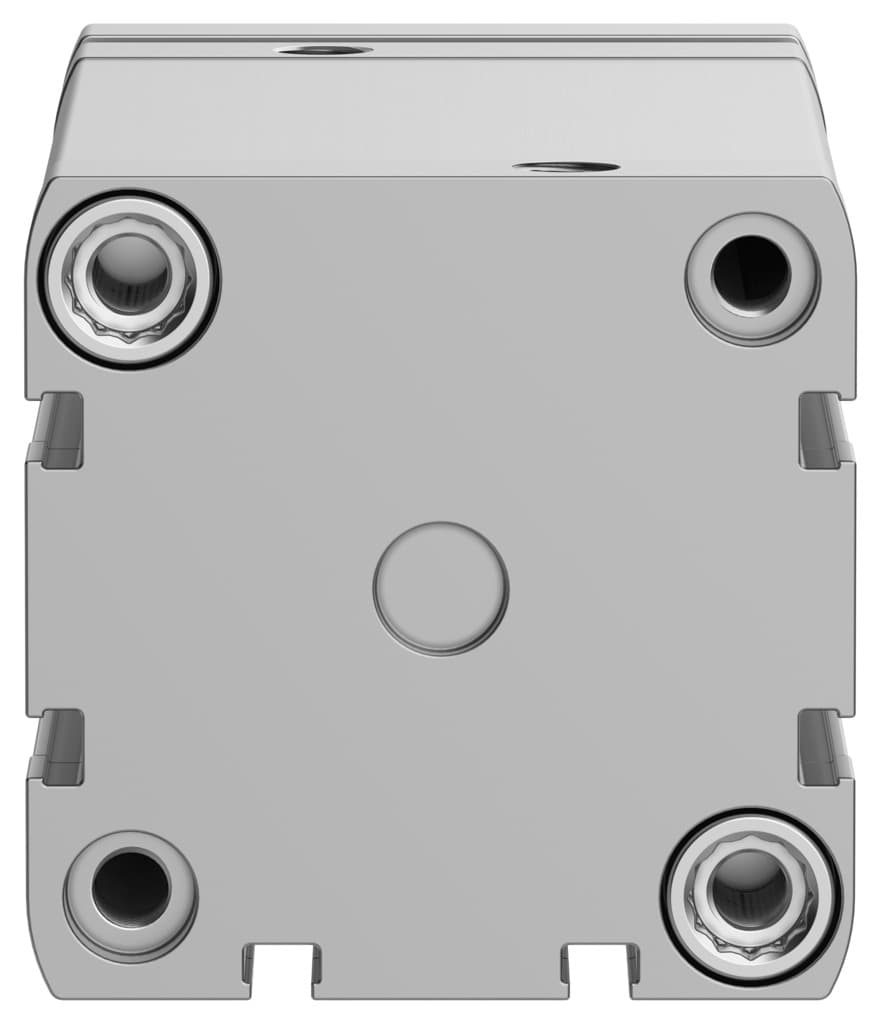

Festo ADNGF-63-80-PPS-A Compact Cylinder - High-Quality Pneumatic Solution

Selling Points

1Compact Design: Ideal for space-constrained applications with a stroke length of 80 mm and piston diameter of 63 mm.
2Self-Adjusting Cushioning: Equipped with PPS (pneumatic cushioning, self-adjusting at both ends) for smooth operation and reduced wear.
3Double-Acting Operation: Designed for double-acting applications, ensuring precise movement in both directions.
4Robust Construction: Built with high-alloy steel piston rod and anodized aluminum alloy cylinder barrel for durability.
5Compliant with ISO Standards: Meets ISO 21287 standards, ensuring high-quality performance and reliability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	80mm	Piston diameter	63 mm
Based on norm	ISO 21287	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Protection against torsion/guide	Guide rod with yoke
Operating pressure	1.4bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	4.8J
Cushioning length	7mm	Theoretical force at 6 bar, retracting	1750N
Theoretical force at 6 bar, advancing	1870N	Moving mass	643g
Product weight	1521g	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
End plate material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	574057

Specifications may be subject to change without notice
