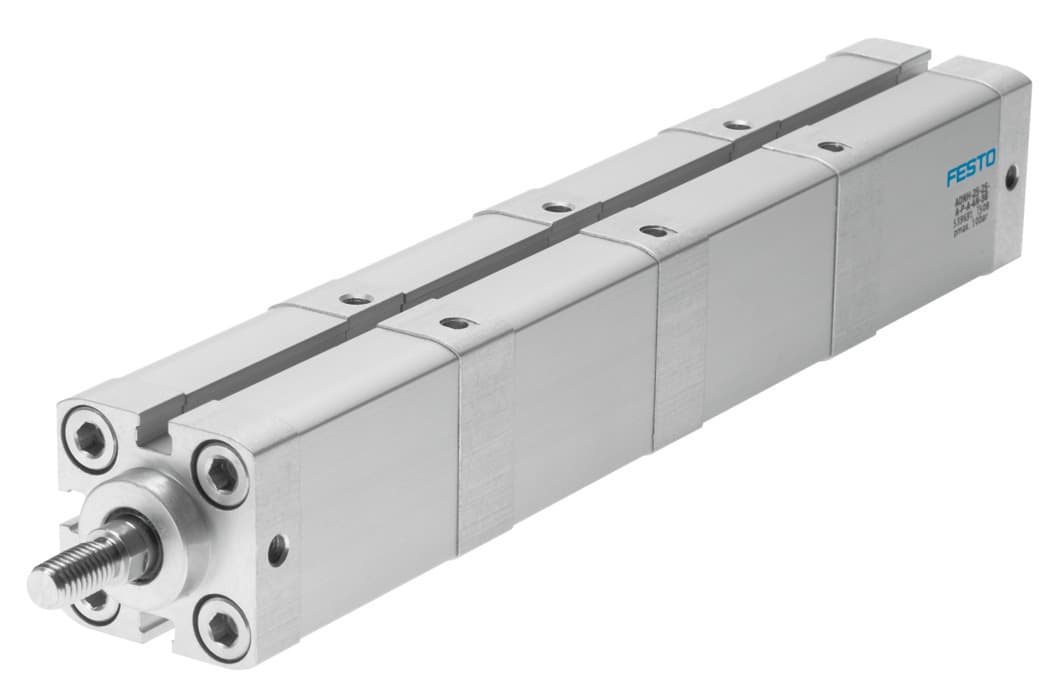

High-Force Cylinder ADNH-100 by Festo

Selling Points

1The ADNH-100 high-force cylinder from Festo offers a maximum force of 10,000 N, making it ideal for demanding applications.
2Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear.
3Designed to meet ISO 21287 standards, the ADNH-100 cylinder provides precise control and reliability in various industrial settings.
4The cylinder features proximity switch-based position detection, allowing for accurate monitoring and control of the piston's movement.
5With a stroke length ranging from 5 mm to 150 mm, the ADNH-100 can be configured to meet specific application requirements.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm 150mm	Piston diameter	100 mm
Based on norm	ISO 21287	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Piston Piston rod Profile barrel	Position sensing	For proximity sensor
Symbol	00991223 00991246 00991267	Variants	Extended external thread piston rod Special thread on piston rod Extended piston rod Heat-resistant seals max. 120°C Laser etched rating plate
Operating pressure	0.6bar 10bar	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 120°C
Theoretical force at 6 bar, retracting	4417N	Theoretical force at 6 bar, advancing	18281N
Type of mounting	Optionally: With internal thread With accessories	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	539694

Specifications may be subject to change without notice
