Product Model
adnm-25- -
Selling Points

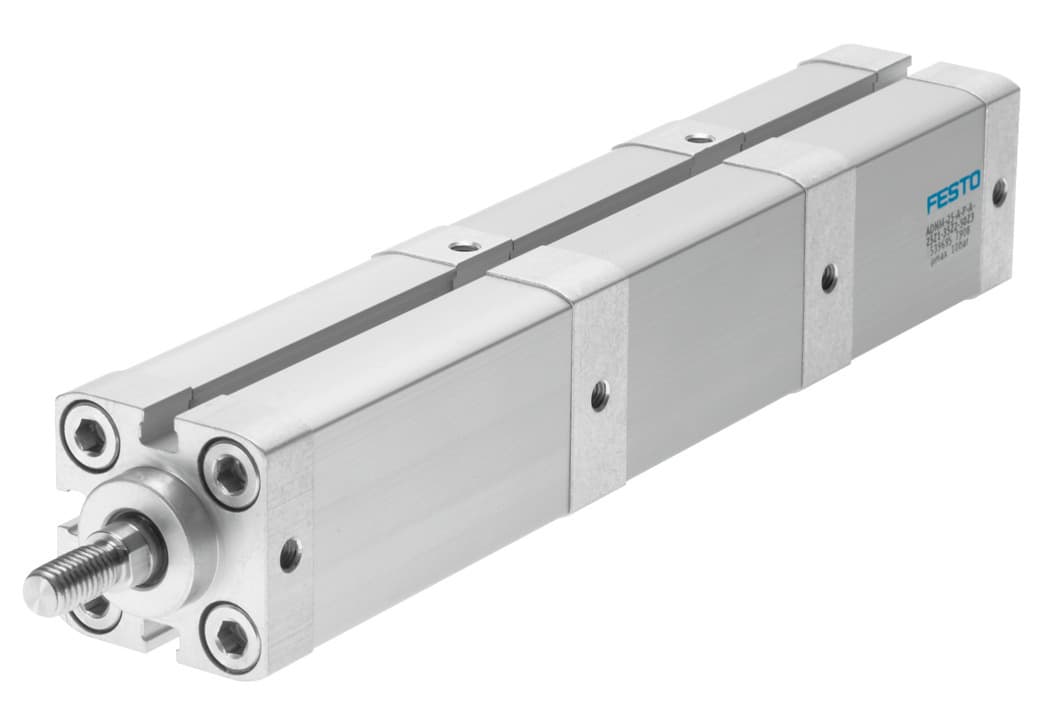

- 1The Festo ADNM-25- - multi-position pneumatic cylinder offers a piston diameter of 25 mm, ensuring precise control and efficient operation in various industrial settings.
- 2This cylinder features a wide range of possible strokes, from 1 mm to 1000 mm for the last cylinder position and 1 mm to 200 mm for intermediate positions, catering to diverse application needs.
- 3Equipped with elastic cushioning rings/plates at both ends, the ADNM-25- - provides reliable cushioning and reduces wear and tear, ensuring extended lifespan.
- 4The cylinder includes a self-aligning quick coupling, making it easy to connect and disconnect without compromising performance or safety.
- 5Designed with a proximity sensor and one-way flow control valve, the ADNM-25- - enhances control and precision in pneumatic systems, making it suitable for complex applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Piston diameter | 25 mm | Possible stroke of last cylinder position | 1mm 1000mm |
Possible stroke of intermediate positions | 1mm 200mm | Based on norm | ISO 21287 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Structural design | Piston Piston rod Profile barrel | Max. number of intermediate positions | 5 |
Max. total of all individual strokes | 1000mm | Position sensing | For proximity sensor |
Symbol | 00991220 | Variants | Extended external thread piston rod Special thread on piston rod Extended piston rod Heat-resistant seals max. 120°C Laser etched rating plate |
Operating pressure | 11.6psi 145psi | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 120°C | Theoretical force at 6 bar, retracting | 247N |
Theoretical force at 6 bar, advancing | 295N | Type of mounting | Optionally: With internal thread With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 539695 |
Specifications may be subject to change without notice
