Product Model
adn-s-10-5-i-f1a
Selling Points

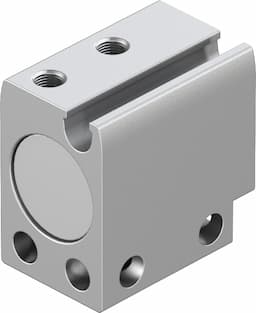

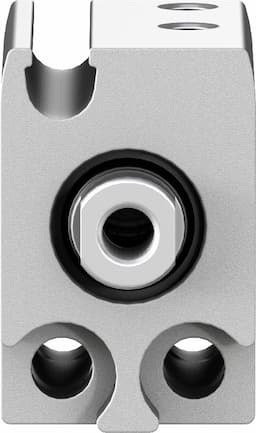

- 1The ADN-S-10-5-I-F1A compact cylinder operates double-acting with no cushioning, making it suitable for a wide range of applications, including the production of lithium-ion batteries.
- 2With a stroke of 5 mm and a piston diameter of 10 mm, this cylinder is designed to be compact and efficient, fitting seamlessly into various production environments.
- 3Made from high-alloy stainless steel for the piston rod and anodized wrought aluminum alloy for the housing, this cylinder offers excellent corrosion resistance and durability.
- 4The cylinder can operate within a wide temperature range of -10 °C to 60 °C and supports compressed air up to 8 bar, ensuring reliable performance in various conditions.
- 5Designed with precision in mind, the ADN-S-10-5-I-F1A features a moving mass of 4.1 g and a product weight of 12.2 g, making it ideal for applications requiring precise control and minimal weight.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 10 mm |
Cushioning | No cushioning | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Symbol | 00991215 |
Variants | Recommended for production facilities for the manufacture of lithium-ion batteries Piston rod at one end | Operating pressure | 14.5psi 116psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 60°C | Impact energy in the end positions | 0.012J |
Theoretical force at 6 bar, retracting | 30.2N | Theoretical force at 6 bar, advancing | 47N |
Moving mass | 4.1g | Product weight | 12.2g |
Type of mounting | With through-hole | Pneumatic connection | M3 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Material of dynamic seals | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized Anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 8142518 |
Specifications may be subject to change without notice
