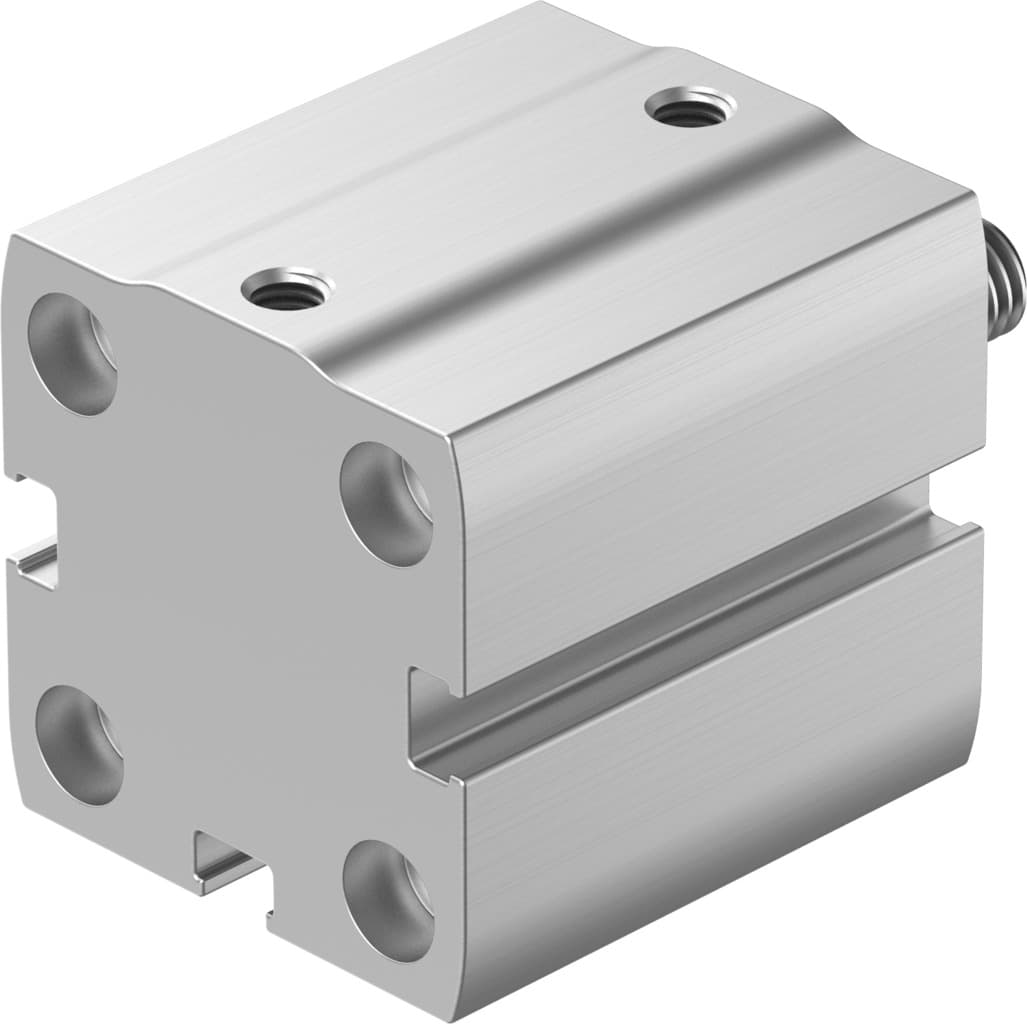

Festo ADN-S-25-20-A-P-A Compact Cylinder - Precision Pneumatic Solutions

Festo adn-s-25-20-a-p-a

Selling Points

1Elastic Cushioning Rings/Plates at Both Ends - Ensures smooth and controlled movement.
2Double-Acting Operation - Allows for both forward and backward motion.
3High-Alloy Stainless Steel Piston Rod - Provides durability and resistance to corrosion.
4Compressed Air Operation - Meets ISO 8573-1:2010 standards for cleanroom environments.
5Optional Mounting Positions - Flexible installation options for various applications.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	20mm	Piston diameter	25 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Piston rod end	External thread
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991217	Variants	Piston rod at one end
Operating pressure	0.6bar 10bar	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L	Cleanroom class	Class 6 according to ISO 14644-1
Ambient temperature	0°C 60°C	Impact energy in the end positions	0.3J
Theoretical force at 6 bar, retracting	247N	Theoretical force at 6 bar, advancing	295N
Moving mass at 0?mm stroke	25g	Additional moving mass per 10?mm stroke	6g
Basic weight with 0?mm stroke	88g	Additional weight per 10?mm stroke	30g
Type of mounting	Optionally: With through-hole With internal thread With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy, anodized
Material of dynamic seals	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy, anodized
Piston rod material	High-alloy stainless steel	Manufacturer ID	8092109

Specifications may be subject to change without notice
