Product Model
adn-s-25-35-i-p-a-f1a
Selling Points

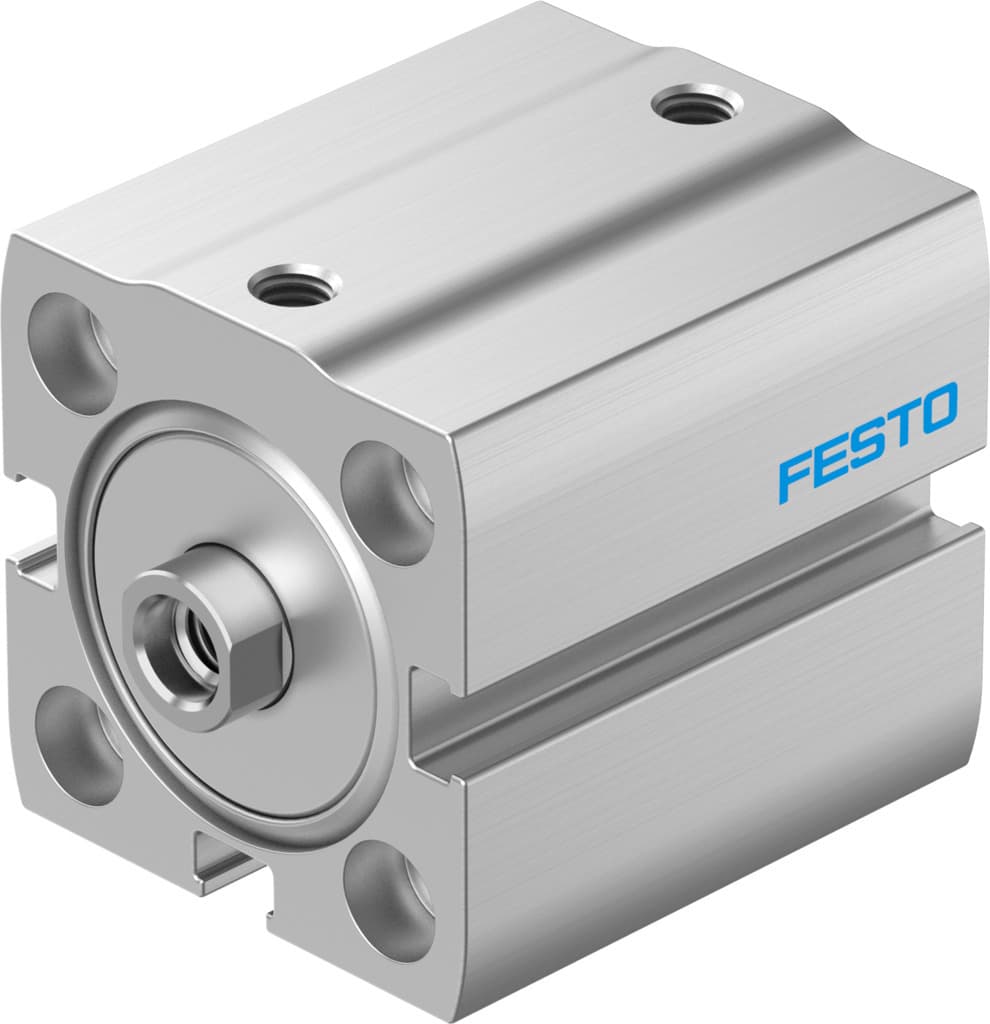

- 1The Festo ADN-S-25-35-I-P-A-F1A compact cylinder is designed for high precision pneumatic actuation, making it ideal for applications requiring precise movement and control.
- 2This cylinder operates double-acting, allowing for both extension and retraction strokes, enhancing versatility in various industrial applications.
- 3Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear on the moving parts.
- 4The ADN-S-25-35-I-P-A-F1A features a corrosion resistance class of CRC 2, ensuring durability in environments with moderate corrosion stress.
- 5This compact cylinder is RoHS-compliant, adhering to the Restriction of Hazardous Substances directive, making it suitable for use in a wide range of applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 35mm | Piston diameter | 25 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Recommended for production facilities for the manufacture of lithium-ion batteries Piston rod at one end |
Operating pressure | 8.7psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | 0°C 60°C |
Impact energy in the end positions | 0.3J | Theoretical force at 6 bar, retracting | 247N |
Theoretical force at 6 bar, advancing | 295N | Moving mass at 0?mm stroke | 25g |
Additional moving mass per 10?mm stroke | 6g | Basic weight with 0?mm stroke | 88g |
Additional weight per 10?mm stroke | 30g | Type of mounting | With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy, anodized | Material of dynamic seals | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 8142812 |
Specifications may be subject to change without notice
