Product Model

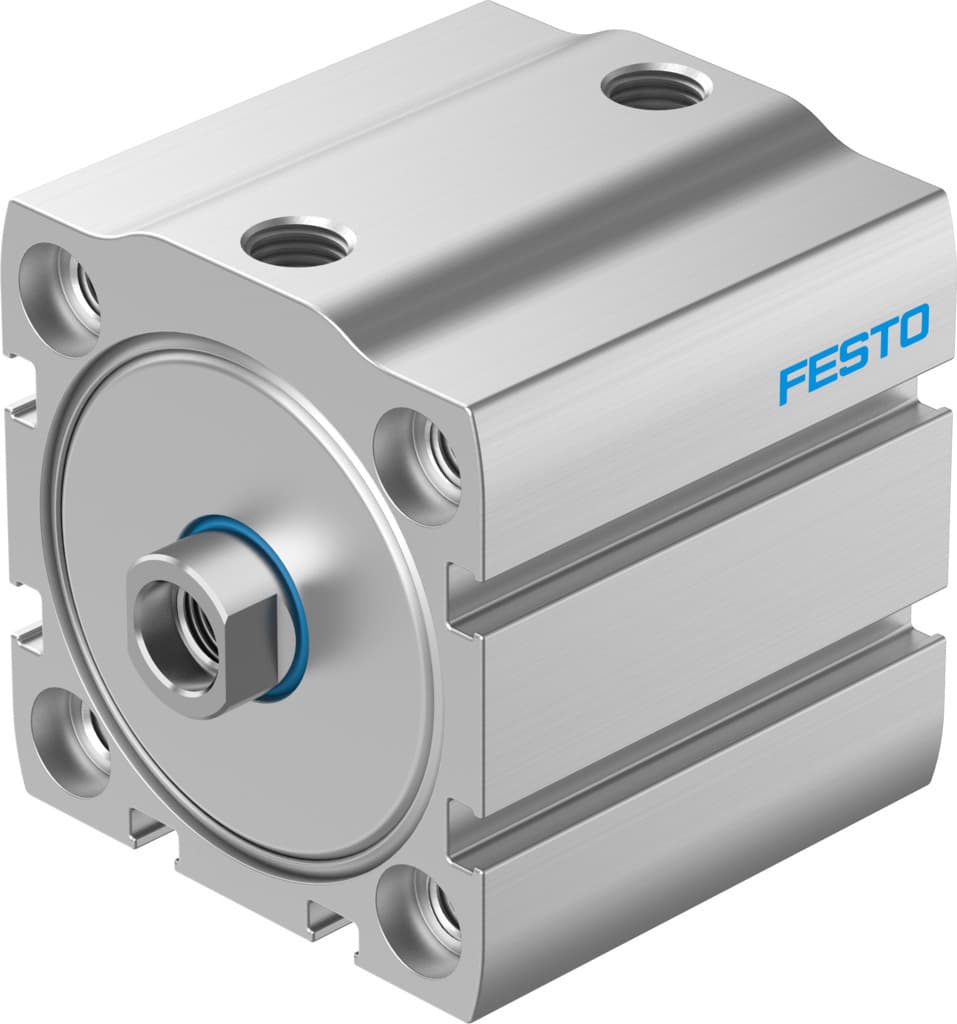

adn-s-50-20-i-p-a-f1a
Selling Points
- 1The Festo ADN-S-50-20-I-P-A-F1A compact cylinder features a 50mm piston diameter and a 20mm stroke, making it perfect for precise and efficient operations.
- 2Equipped with elastic cushioning rings/pads at both ends, this cylinder ensures smooth and controlled movement, reducing wear and tear.
- 3The ADN-S-50-20-I-P-A-F1A is designed for double-acting operations, allowing for both forward and backward movements, enhancing versatility in various applications.
- 4Made from high-alloy stainless steel, the piston rod offers excellent corrosion resistance and durability, suitable for use in cleanroom environments and production facilities.
- 5This compact cylinder is RoHS-compliant and suitable for operation with compressed air as per ISO 8573-1:2010, ensuring compliance with industry standards and environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 20mm | Piston diameter | 50 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Recommended for production facilities for the manufacture of lithium-ion batteries Piston rod at one end |
Operating pressure | 5.8psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | 0°C 60°C |
Impact energy in the end positions | 1J | Theoretical force at 6 bar, retracting | 1057N |
Theoretical force at 6 bar, advancing | 1178N | Moving mass at 0?mm stroke | 104g |
Additional moving mass per 10?mm stroke | 16g | Basic weight with 0?mm stroke | 324g |
Additional weight per 10?mm stroke | 63g | Type of mounting | With through-hole With internal thread |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy, anodized | Material of dynamic seals | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 8142900 |
Specifications may be subject to change without notice
