Product Model
adn-s-6-5-i-a-f1a
Selling Points

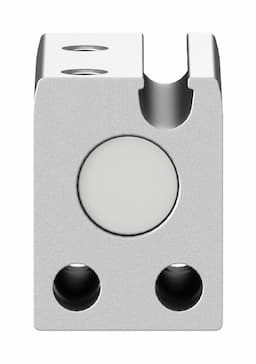

- 1The ADN-S-6-5-I-A-F1A compact cylinder from Festo offers a stroke length of 5 mm and a piston diameter of 6 mm, making it ideal for applications requiring precise movement.
- 2This double-acting cylinder features no cushioning, allowing for efficient operation in a variety of industrial settings, including production facilities for lithium-ion batteries.
- 3With a moving mass of 1.6 g and a product weight of 10.9 g, the ADN-S-6-5-I-A-F1A is lightweight yet robust, ensuring reliable performance in demanding environments.

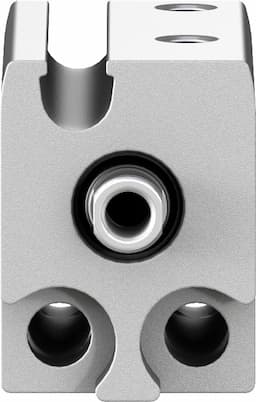

- 4The cylinder is designed with a through-hole mounting option and features a female thread at the piston-rod end, providing flexibility in installation and integration.
- 5The ADN-S-6-5-I-A-F1A is RoHS-compliant and made from high-quality materials, including wrought aluminum alloy for the housing and high-alloy stainless steel for the piston rod, ensuring durability and corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 6 mm |
Cushioning | No cushioning | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991216 | Variants | Recommended for production facilities for the manufacture of lithium-ion batteries Piston rod at one end |
Operating pressure | 21.75psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
Impact energy in the end positions | 0.006J | Theoretical force at 6 bar, retracting | 9.4N |
Theoretical force at 6 bar, advancing | 17N | Moving mass | 1.6g |
Product weight | 10.9g | Type of mounting | With through-hole |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized Anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 8142511 |
Specifications may be subject to change without notice
