Product Model
adn-s-6-5-i-f1a
Selling Points

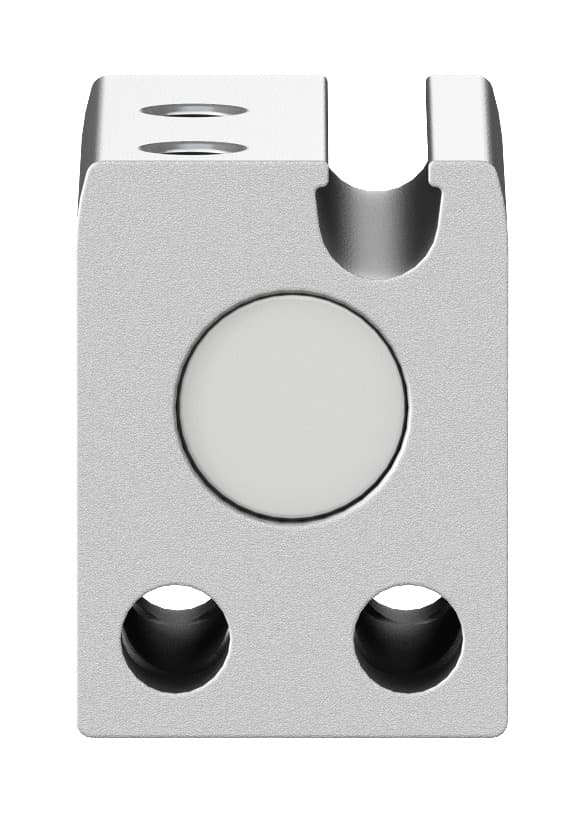

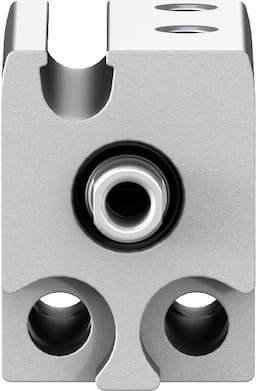

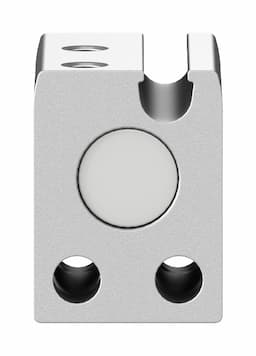

- 1The ADN-S-6-5-I-F1A pneumatic cylinder is engineered for precise movements, ensuring reliable performance in demanding industrial environments.
- 2With a stroke of 5 mm and a piston diameter of 6 mm, this compact cylinder is ideal for applications requiring minimal space.
- 3Designed for double-acting operation, the ADN-S-6-5-I-F1A can handle both advancing and retracting movements with ease.
- 4Certified for ISO Class 6 cleanroom environments, this cylinder is suitable for applications in cleanrooms and other controlled environments.
- 5Constructed from high-alloy stainless steel for the piston rod and wrought aluminum alloy for the housing, ensuring durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 6 mm |
Cushioning | No cushioning | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Symbol | 00991215 |
Variants | Recommended for production facilities for the manufacture of lithium-ion batteries Piston rod at one end | Operating pressure | 21.75psi 116psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 60°C | Impact energy in the end positions | 0.006J |
Theoretical force at 6 bar, retracting | 9.4N | Theoretical force at 6 bar, advancing | 17N |
Moving mass | 1.5g | Product weight | 9.2g |
Type of mounting | With through-hole | Pneumatic connection | M3 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Material of dynamic seals | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized Anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 8142509 |
Specifications may be subject to change without notice
