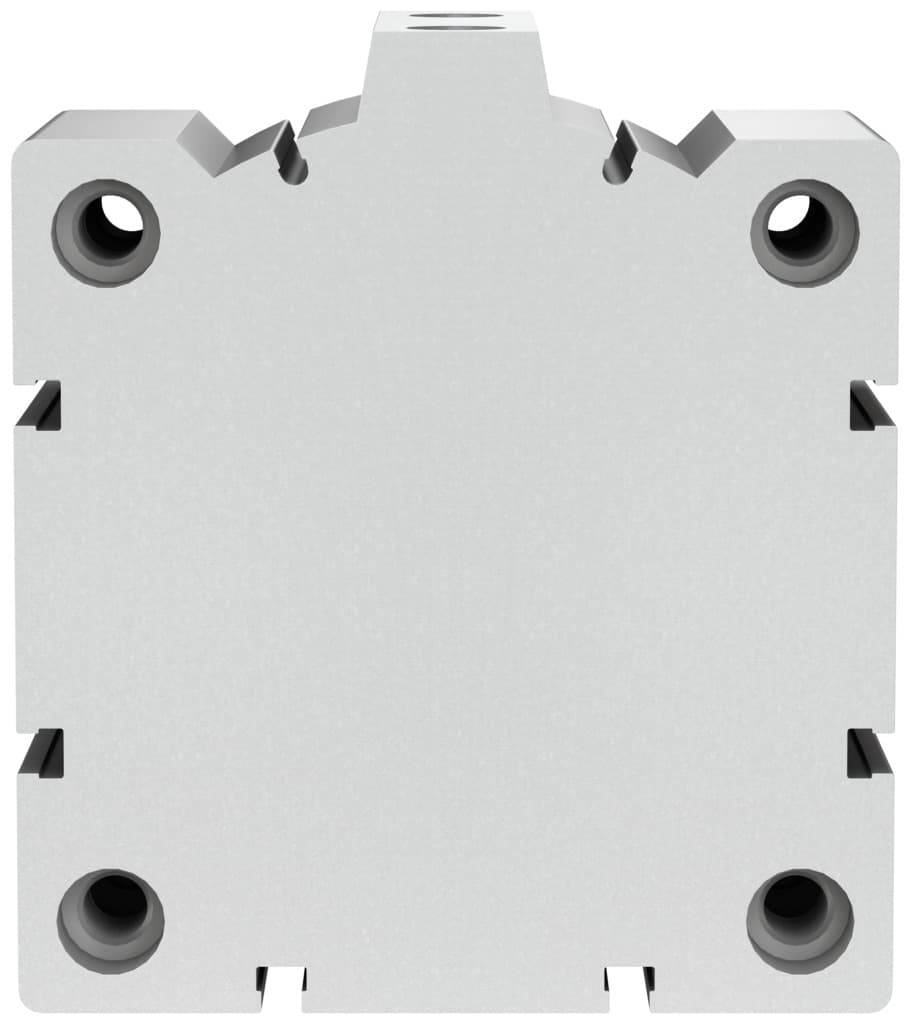

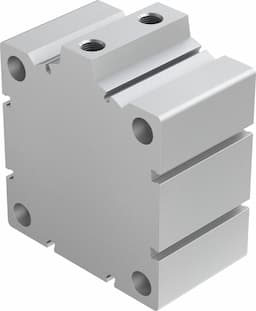

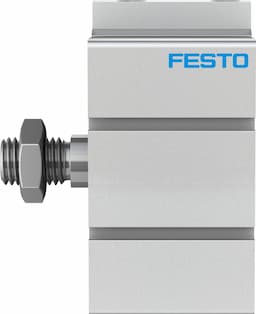

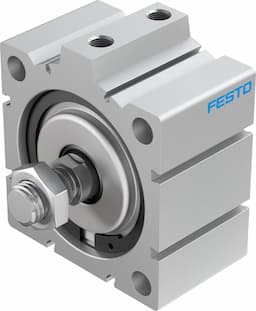

Product Model
advc-100-10-a-p-a
Selling Points
- 1Built with high-alloy steel piston rod and anodized aluminum housing for robust performance.
- 210mm stroke and 100mm piston diameter for precise control in tight spaces.
- 3Operates in both directions, enhancing versatility in industrial applications.
- 4Compatible with ISO 8573-1:2010 [7:4:4] compressed air standards.
- 5Meets CRC 1 corrosion resistance class, ensuring long-term reliability in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 100 mm |
Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991217 | Operating pressure | 14.5psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 4418N |
Theoretical force at 6 bar, advancing | 4712N | Moving mass | 535g |
Moving mass at 0?mm stroke | 515g | Additional moving mass per 10?mm stroke | 40g |
Product weight | 2200g | Basic weight with 0?mm stroke | 2145g |
Additional weight per 10?mm stroke | 110g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188340 |
Specifications may be subject to change without notice
