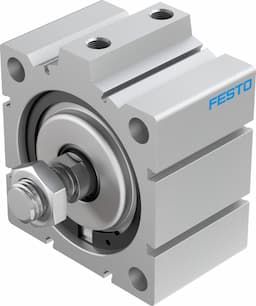

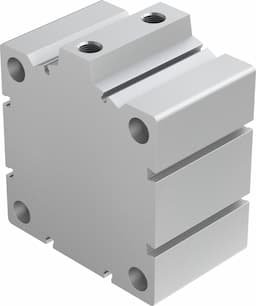

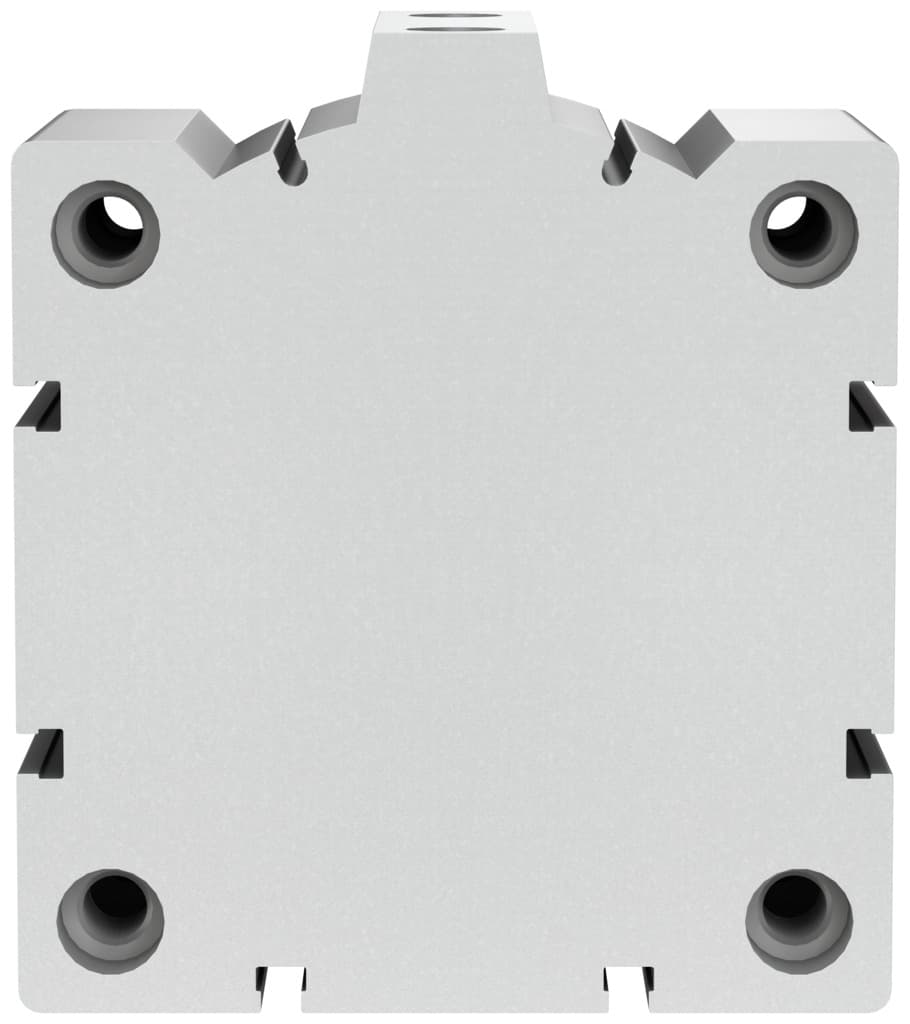

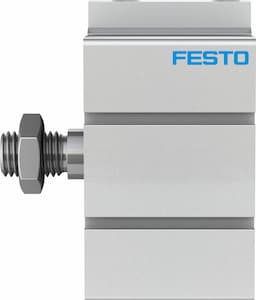

Product Model
advc-100-15-a-p-a
Selling Points
- 1Compact Design: The ADVC-100-15-A-P-A features a compact design with a stroke length of 15 mm, perfect for space-constrained applications.
- 2High-Pressure Operation: Operates under pressures ranging from 0.1 to 10 bar, ensuring reliable performance in demanding conditions.
- 3Elastic Cushioning: Equipped with elastic cushioning rings/pads at both ends for smooth operation and reduced wear.
- 4Versatile Mounting: Can be mounted via through-hole or with accessories, offering flexibility in installation.
- 5Corrosion Resistance: Made from corrosion-resistant materials, including wrought aluminum alloy and high-alloy steel, ensuring durability in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 100 mm |
Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991217 | Operating pressure | 14.5psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 4418N |
Theoretical force at 6 bar, advancing | 4712N | Moving mass | 555g |
Moving mass at 0?mm stroke | 515g | Additional moving mass per 10?mm stroke | 40g |
Product weight | 2325g | Basic weight with 0?mm stroke | 2145g |
Additional weight per 10?mm stroke | 110g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188341 |
Specifications may be subject to change without notice
