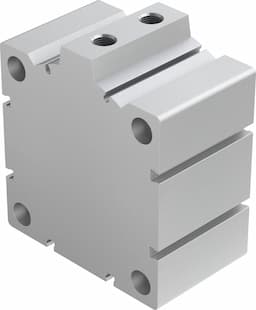

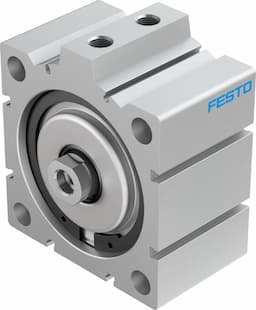

Festo ADVC-100-20-I-P Short-Stroke Cylinder - High Precision and Reliability

Selling Points

1Designed with a piston diameter of 100 mm and a stroke of 20 mm for precise control in pneumatic systems.
2Features elastic cushioning rings/pads at both ends for smooth operation and low vibration.
3Meets CRC 1 standards, ensuring minimal corrosion stress in various industrial environments.
4Can be mounted via through-hole or with accessories, offering flexibility in installation.
5Operates with compressed air as per ISO 8573-1:2010, ensuring compatibility with international standards.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	20mm	Piston diameter	100 mm
Based on norm	ISO 6431 Hole pattern VDMA 24562	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Piston Piston rod	Position sensing	None
Symbol	00991227	Operating pressure	14.5psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	4418N
Theoretical force at 6 bar, advancing	4712N	Moving mass	739g
Moving mass at 0?mm stroke	679g	Additional moving mass per 10?mm stroke	40g
Product weight	2228g	Basic weight with 0?mm stroke	1972g
Additional weight per 10?mm stroke	214g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/4	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	NBR TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188338

Specifications may be subject to change without notice
