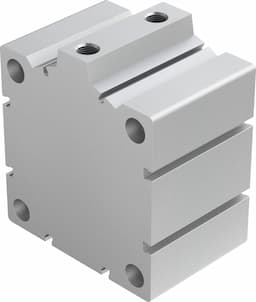

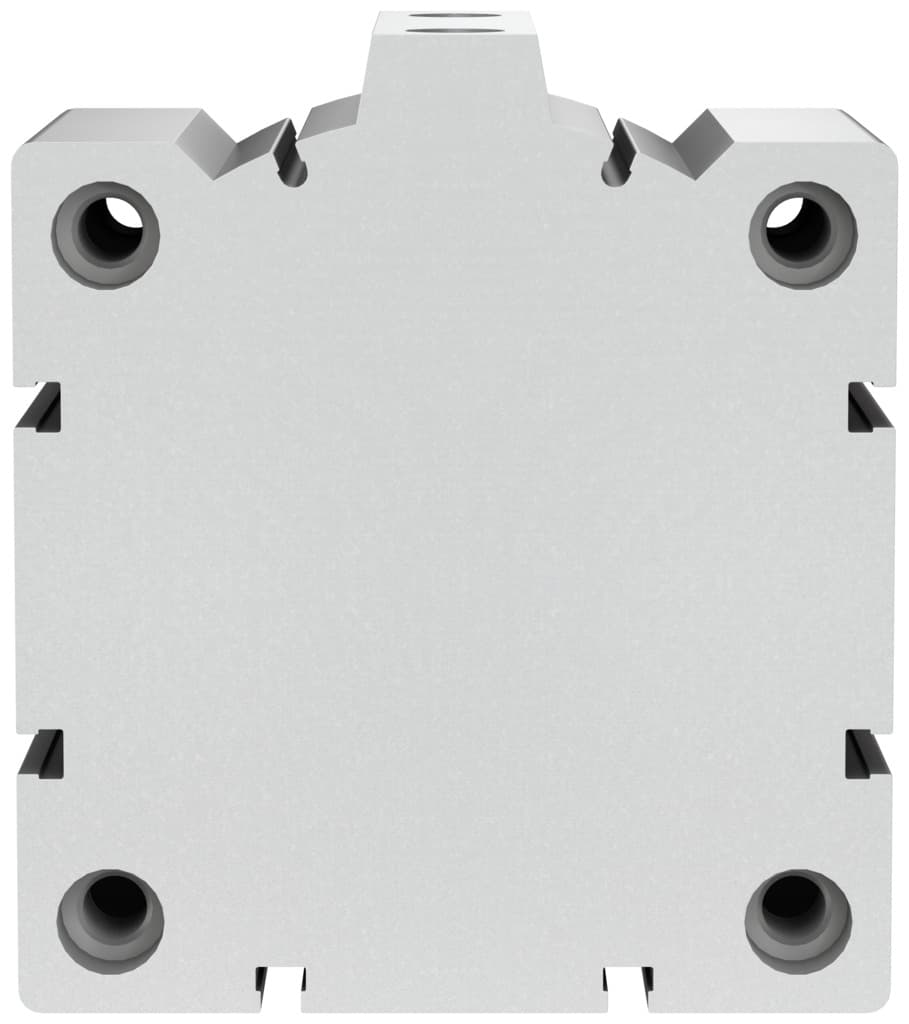

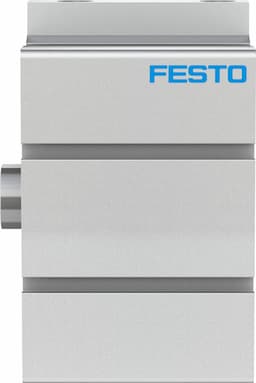

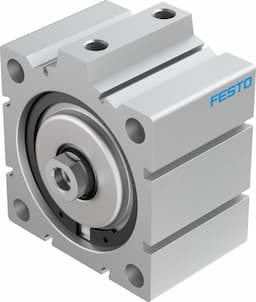

Festo ADVC-100-20-I-P-A Short-Stroke Cylinder

Selling Points

1Compact Design: The Festo ADVC-100-20-I-P-A offers a compact design suitable for various industrial applications.
2High Precision: Equipped with a 100mm piston diameter and 20mm stroke, ensuring high precision and reliable operation.
3Double-Acting Mode: Supports double-acting mode of operation, allowing for both advancing and retracting forces.
4Elastic Cushioning: Features elastic cushioning rings/plates at both ends for smooth operation and reduced wear.
5Corrosion Resistance: Built with low corrosion stress materials, ensuring durability in harsh environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	20mm	Piston diameter	100 mm
Based on norm	ISO 6431 Hole pattern VDMA 24562	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991217	Operating pressure	14.5psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	4418N
Theoretical force at 6 bar, advancing	4712N	Moving mass	575g
Moving mass at 0?mm stroke	515g	Additional moving mass per 10?mm stroke	40g
Product weight	2286g	Basic weight with 0?mm stroke	2145g
Additional weight per 10?mm stroke	110g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/4	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188334

Specifications may be subject to change without notice
