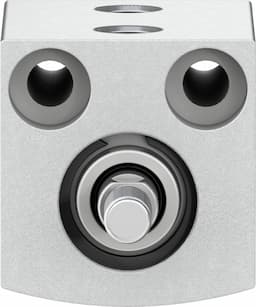

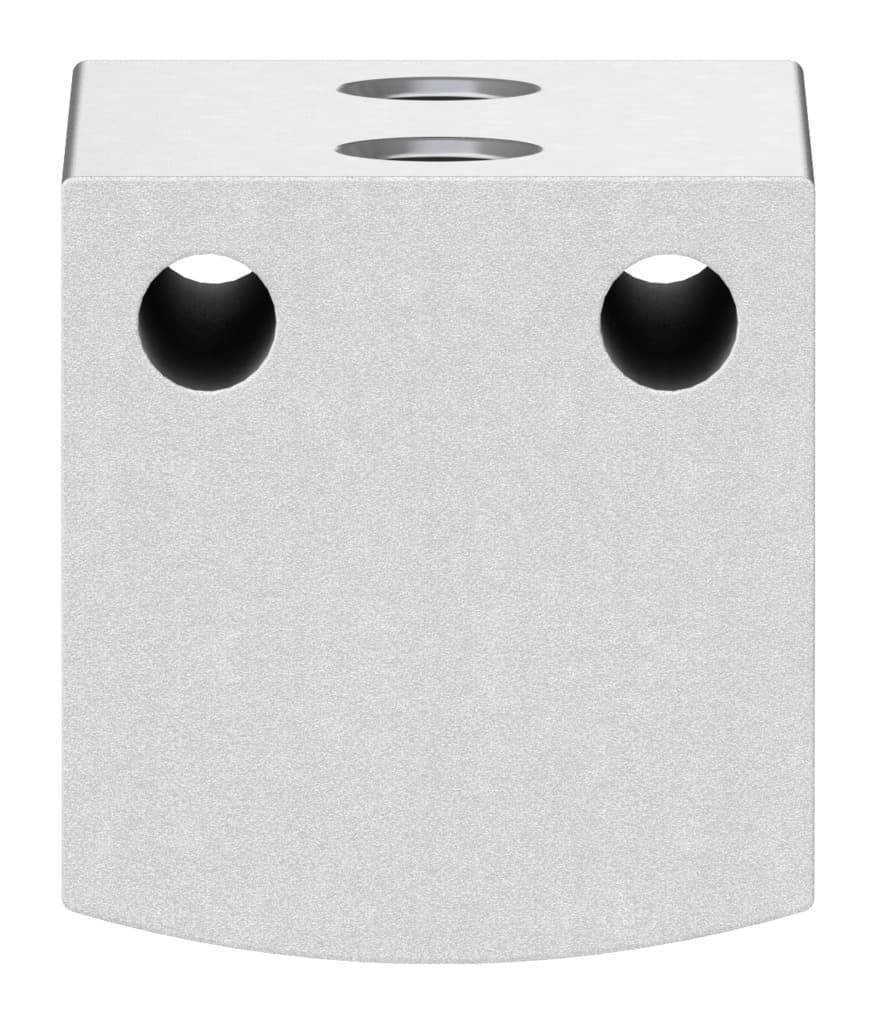

Festo ADVC-10-10-A-P Short-Stroke Cylinder | High-Quality Pneumatic Components

Selling Points

1The Festo ADVC-10-10-A-P short-stroke cylinder offers a stroke length of 10 mm, making it ideal for applications requiring precise movement control.
2Equipped with elastic cushioning rings/plates at both ends, this cylinder provides effective damping and reduces wear and tear on the system.
3The ADVC-10-10-A-P operates within a wide pressure range of 0.1 MPa to 0.8 MPa (1 bar to 8 bar), ensuring versatility in various industrial settings.
4Constructed from high-quality materials, including wrought aluminum alloy with an anodized finish, this cylinder ensures durability and corrosion resistance.
5Designed for double-acting operation, the ADVC-10-10-A-P offers efficient movement in both directions, enhancing productivity in manufacturing processes.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	10 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	None	Symbol	00991227
Operating pressure	14.5psi 116psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	40N	Theoretical force at 6 bar, advancing	47N
Moving mass	3.3g	Product weight	21g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188079

Specifications may be subject to change without notice
