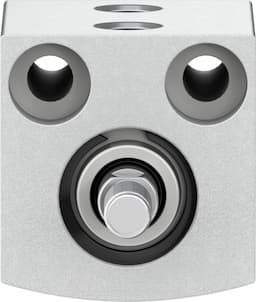

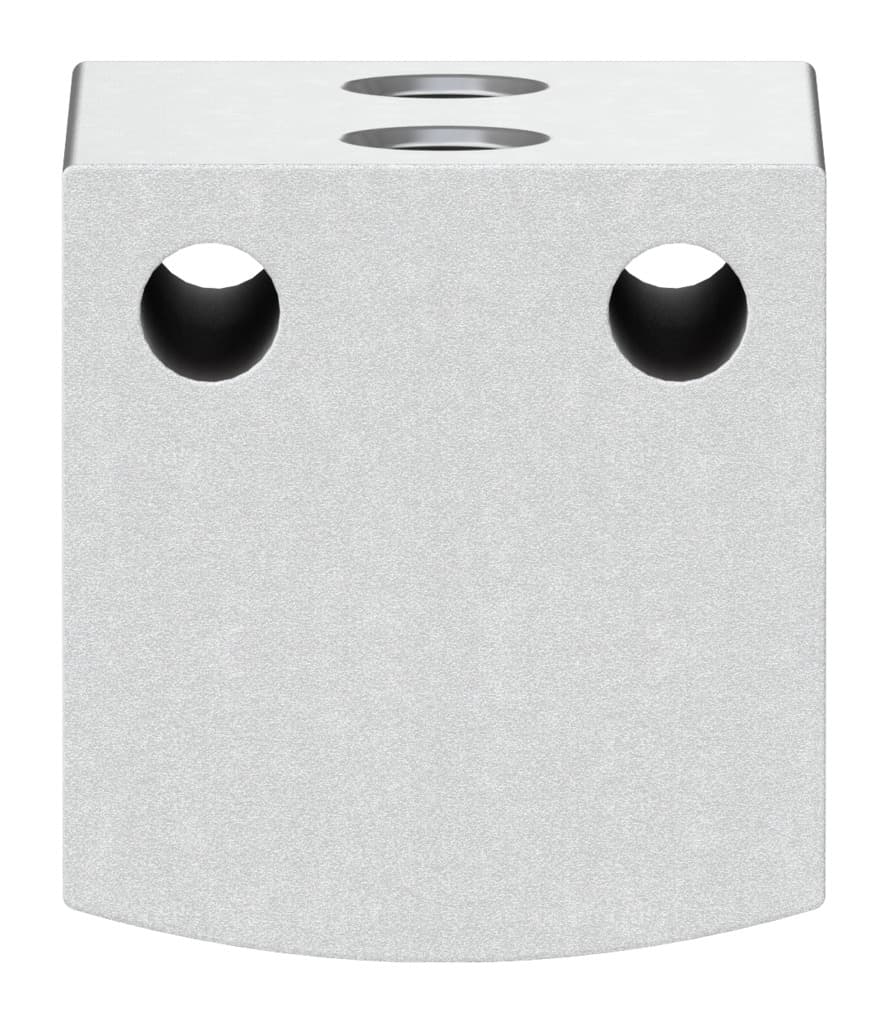

Festo ADVC-10-5-A-P Short-Stroke Cylinder | High-Quality Pneumatic Components

Selling Points

1The ADVC-10-5-A-P features a stroke length of 5 mm and a piston diameter of 10 mm, making it ideal for applications requiring precise movement.
2Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear.
3The ADVC-10-5-A-P operates under a wide range of pressures (0.1 MPa to 0.8 MPa or 1 bar to 8 bar) and is compatible with compressed air to ISO 8573-1:2010.
4This pneumatic cylinder is designed for double-acting operation, allowing for both extension and retraction strokes, enhancing its versatility in various applications.
5The ADVC-10-5-A-P is constructed with a low corrosion resistance class (CRC 1) and is compliant with LABS (PWIS) standards, ensuring durability in various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	10 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	None	Symbol	00991227
Operating pressure	14.5psi 116psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	40N	Theoretical force at 6 bar, advancing	47N
Moving mass	2.8g	Product weight	20g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188078

Specifications may be subject to change without notice
