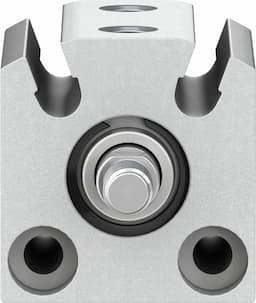

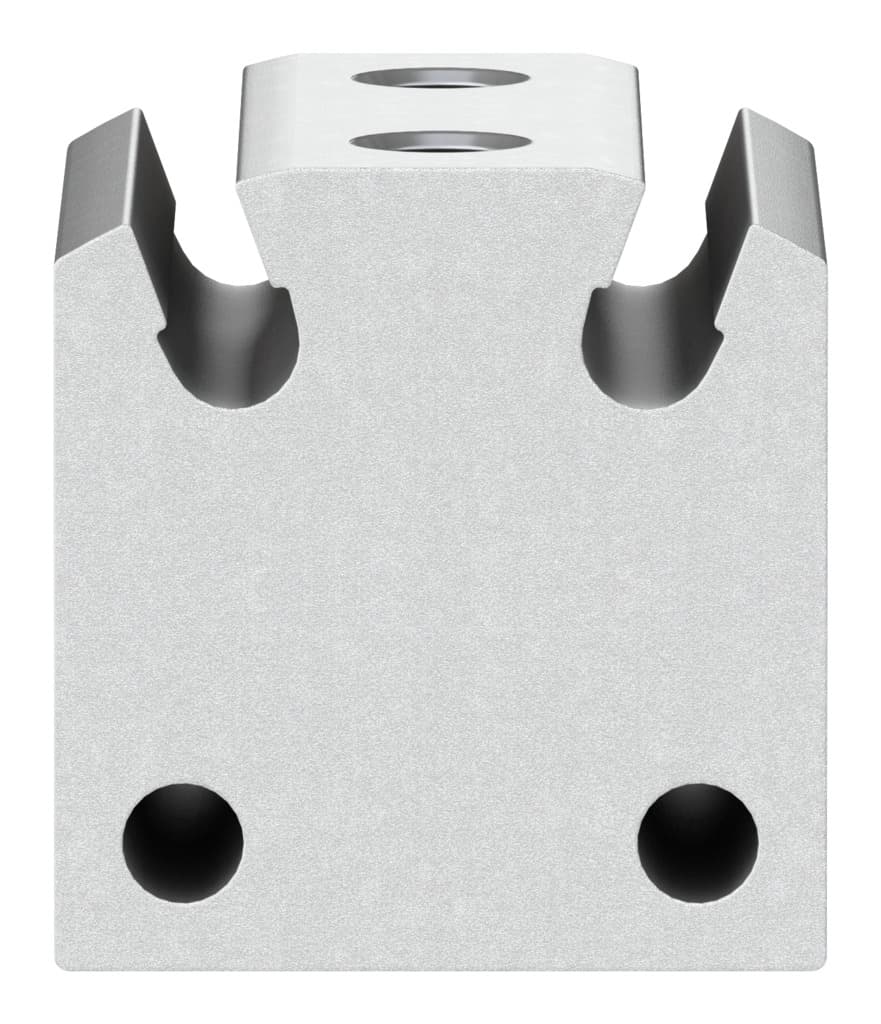

Festo ADVC-10-5-A-P-A Short Stroke Cylinder - High-Quality Pneumatic Components

Selling Points

1The ADVC-10-5-A-P-A is a double-acting short stroke cylinder with a stroke length of 5 mm, ideal for applications requiring precise and controlled movements.
2This cylinder features elastic silencer rings for effective damping, ensuring smooth operation and minimizing vibrations.
3The ADVC-10-5-A-P-A operates within a wide temperature range of -20°C to 80°C, making it suitable for various industrial environments.
4With a piston diameter of 10 mm and a moving mass of 3.2 grams, this cylinder offers high force-to-weight ratio, enhancing its efficiency in pneumatic systems.
5The ADVC-10-5-A-P-A is designed for lubricated operation, which is required for optimal performance and longevity, ensuring reliable operation in compressed air applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	10 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	14.5psi 116psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	40N	Theoretical force at 6 bar, advancing	47N
Moving mass	3.2g	Product weight	28g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188076

Specifications may be subject to change without notice
