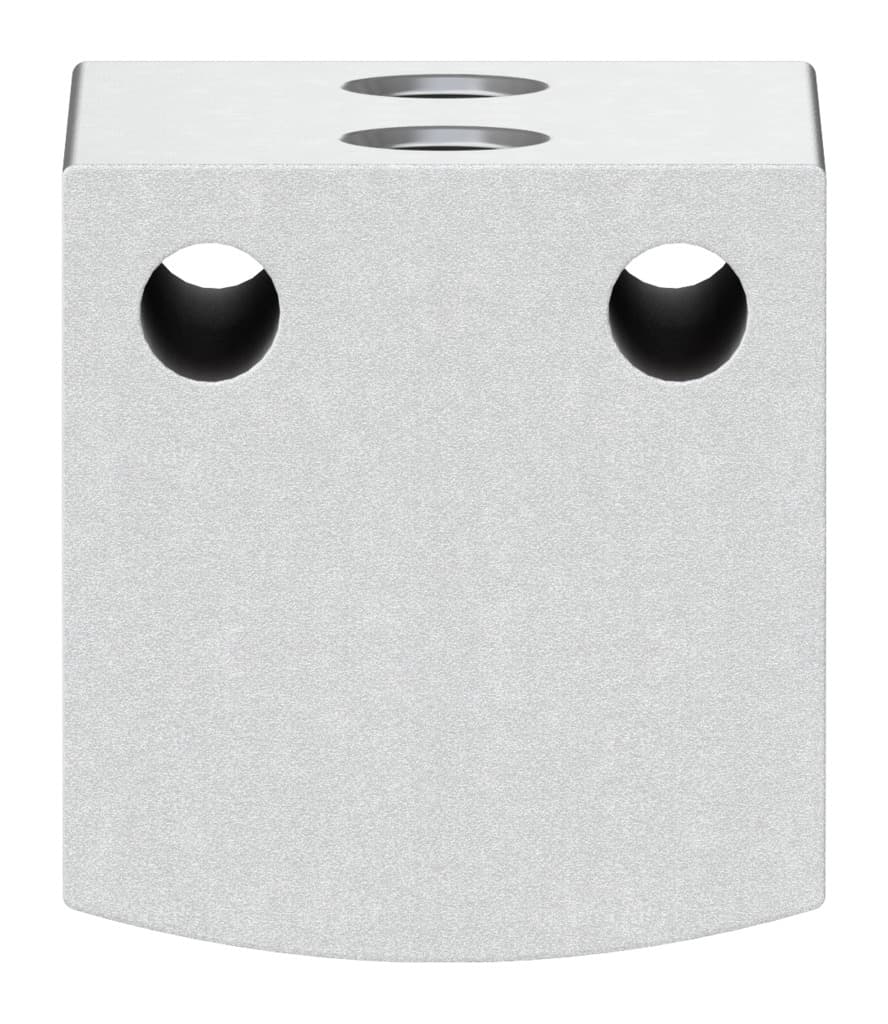

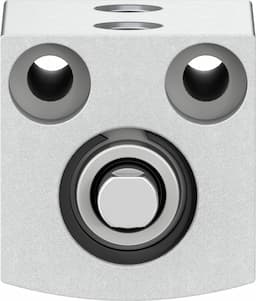

Product Model
advc-10-5-p
Selling Points
- 1The ADVC-10-5-A-P offers a 5 mm stroke length and 10 mm piston diameter, ensuring precise control in various applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear.
- 3The cylinder can be mounted in any position, offering flexibility in system design and integration.
- 4Designed for operation with compressed air as per ISO 8573-1:2010, ensuring reliable performance in pneumatic systems.
- 5Featuring a low corrosion stress (CRC 1) and conforming to LABS (PWIS) standards, this cylinder is durable and resistant to environmental stressors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 10 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod |
Position sensing | None | Symbol | 00991227 |
Operating pressure | 14.5psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, retracting | 40N | Theoretical force at 6 bar, advancing | 47N |
Moving mass | 2.8g | Product weight | 19g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 526903 |
Specifications may be subject to change without notice
