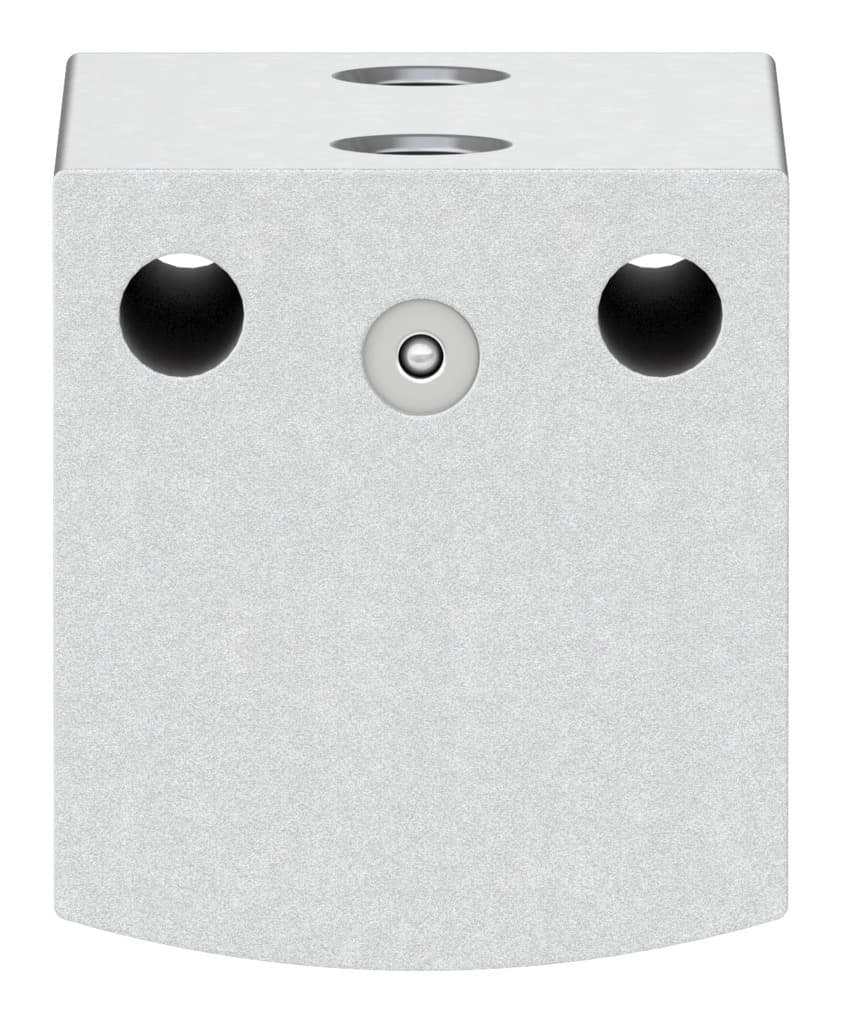

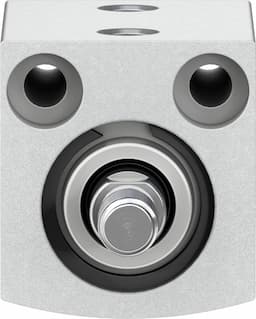

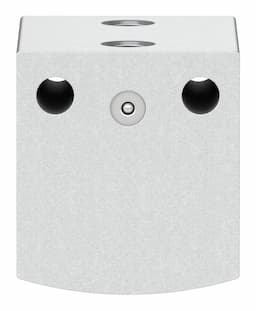

Festo ADVC-12-10-A-P Short-Stroke Cylinder - High-Quality Pneumatic Solution

Selling Points

1The Festo ADVC-12-10-A-P short-stroke cylinder offers a 10mm stroke and a 12mm piston diameter, making it perfect for applications requiring precise movement.
2Equipped with elastic cushioning rings/pads at both ends, this cylinder ensures smooth operation and reduces wear and tear.
3Designed for double-acting operations, the ADVC-12-10-A-P can handle both retracting and advancing forces with ease, making it versatile for various applications.
4Compatible with compressed air as per ISO 8573-1:2010, this cylinder operates within a pressure range of 0.1 MPa to 1 MPa, ensuring reliable performance.
5Constructed from high-quality materials, including wrought aluminum alloy for the cover and high-alloy steel for the piston rod, the ADVC-12-10-A-P offers excellent corrosion resistance and durability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	12 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	None	Symbol	00991227
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	51N	Theoretical force at 6 bar, advancing	68N
Moving mass	7.7g	Product weight	35g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188095

Specifications may be subject to change without notice
