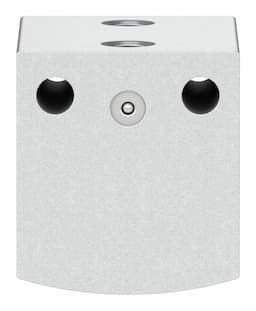

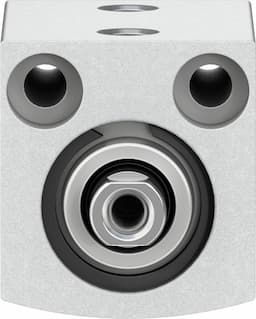

Product Model
advc-12-10-i-p
Selling Points
- 1The Festo ADVC-12-10-I-P short-stroke cylinder offers a stroke length of 10 mm and a piston diameter of 12 mm, making it ideal for applications requiring precise movement.
- 2This cylinder operates within a pressure range of 0.1 to 1 MPa and is designed for double-acting operation, ensuring consistent performance in various industrial settings.
- 3The ADVC-12-10-I-P features elastic cushioning rings/pads at both ends, providing effective dampening and reducing wear on the cylinder.
- 4With a moving mass of 7.7 grams and a product weight of 42 grams, this cylinder is lightweight and easy to integrate into complex automation systems.
- 5The Festo ADVC-12-10-I-P is compatible with compressed air as per ISO 8573-1:2010 and can be used with oil lubrication for extended service life, making it a versatile choice for various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 12 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod |
Position sensing | None | Symbol | 00991227 |
Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, retracting | 51N | Theoretical force at 6 bar, advancing | 68N |
Moving mass | 7.7g | Product weight | 33g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 188091 |
Specifications may be subject to change without notice
