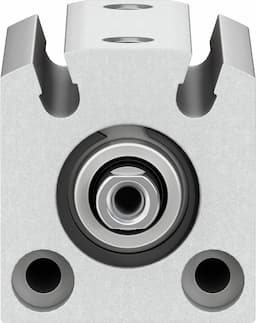

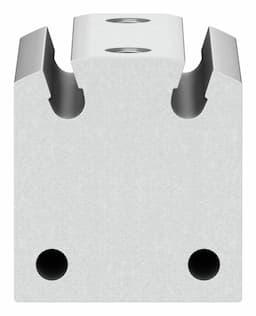

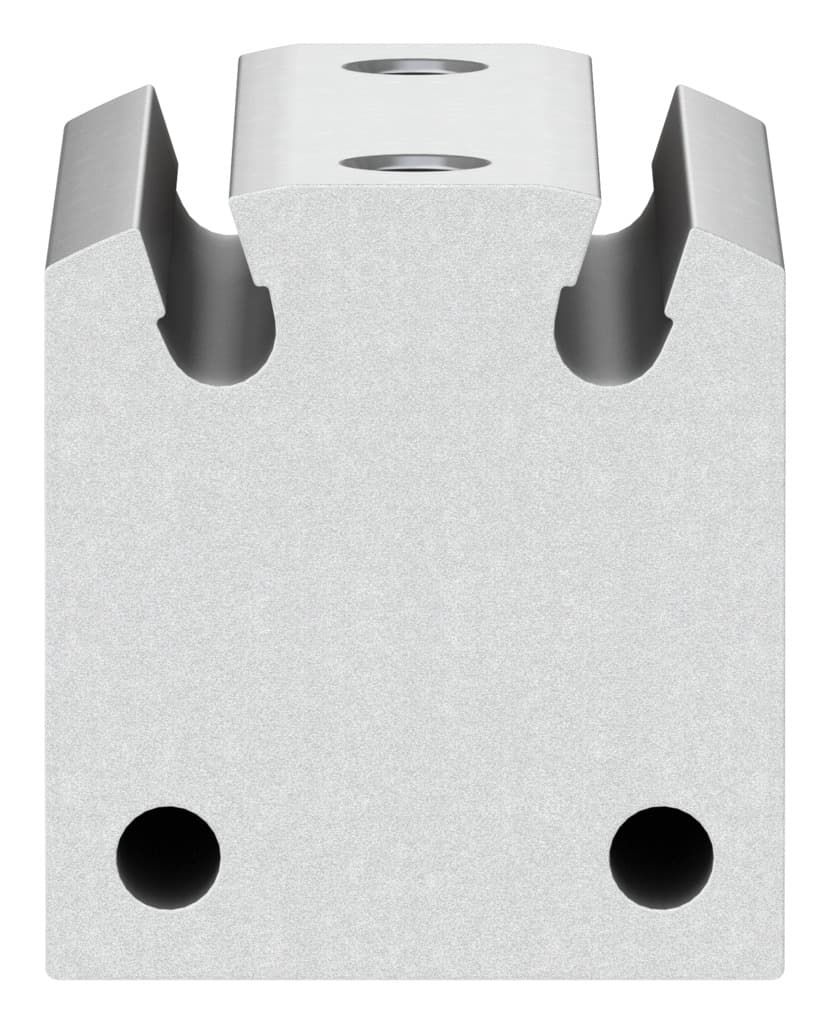

Festo ADVC-12-10-I-P-A Short-Stroke Cylinder | High-Quality Pneumatic Solutions

Selling Points

1The ADVC-12-10-I-P-A features a stroke length of 10 mm and a piston diameter of 12 mm, making it ideal for applications requiring precise movement.
2Equipped with elastic cushioning rings/pads at both ends, this cylinder ensures smooth operation and reduces wear and tear.
3The ADVC-12-10-I-P-A supports double-acting operation, allowing for both extension and retraction strokes, enhancing versatility in various applications.
4Operating within a temperature range of -20°C to 80°C and compatible with compressed air as per ISO 8573-1:2010, this cylinder is reliable in diverse environments.
5With a moving mass of 9.6 g and a product weight of 79 g, the ADVC-12-10-I-P-A is lightweight yet robust, making it suitable for a wide range of automation tasks.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	12 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	51N	Theoretical force at 6 bar, advancing	68N
Moving mass	9.6g	Product weight	64g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188089

Specifications may be subject to change without notice
