advc-12-5-i-p-a

Selling Points

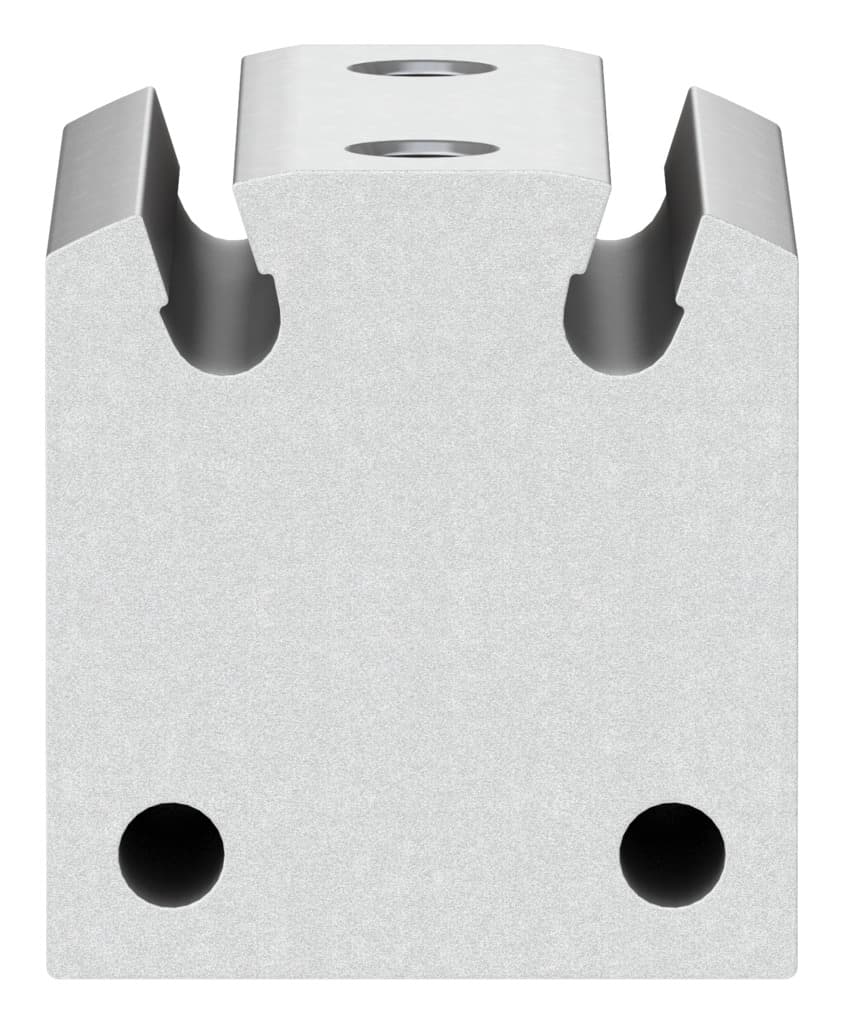

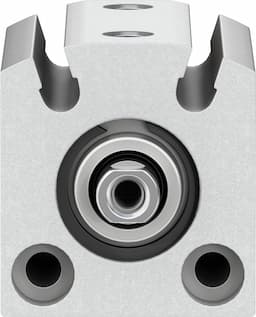

• 1The ADVC-12-5-I-P-A short stroke cylinder from Festo features a piston diameter of 12 mm and a stroke length of 5 mm, making it suitable for precise and compact applications.
• 2This cylinder offers elastic cushioning rings/pads at both ends for enhanced durability and performance, ensuring smooth operation in various environments.
• 3The ADVC-12-5-I-P-A is designed for lubricated operation, which is always required, and can operate within an ambient temperature range of -20°C to +80°C.
• 4With a corrosion resistance class of 1 according to Festo standard 940 070, this cylinder is ideal for applications requiring low corrosion resistance, such as internal areas not visible to the naked eye.
• 5The theoretical force at 6 bar for advancing is 68 N, and for retracting is 51 N, providing reliable force output in pneumatic applications.
