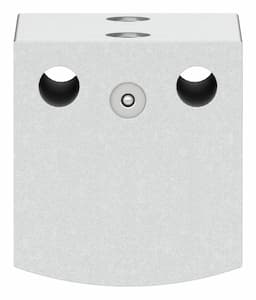

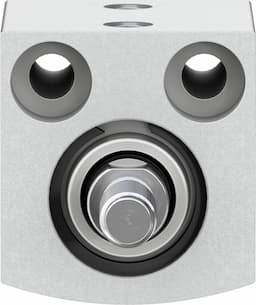

Product Model
advc-16-10-a-p
Selling Points
- 1Designed for precise movements with a stroke length of 10 mm.
- 2Meets CRC1 standards, ensuring reliability in various environments.
- 3Operates in both directions, providing efficient and balanced motion.
- 4Works with compressed air as per ISO 8573-1:2010, ensuring consistent performance.
- 5Built with wrought aluminum alloy housing and high-alloy steel piston rod for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod |
Position sensing | None | Symbol | 00991227 |
Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, retracting | 90N | Theoretical force at 6 bar, advancing | 121N |
Moving mass | 13g | Moving mass at 0?mm stroke | 9g |
Additional moving mass per 10?mm stroke | 4g | Product weight | 51g |
Basic weight with 0?mm stroke | 36g | Additional weight per 10?mm stroke | 14g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 188124 |
Specifications may be subject to change without notice
