Product Model

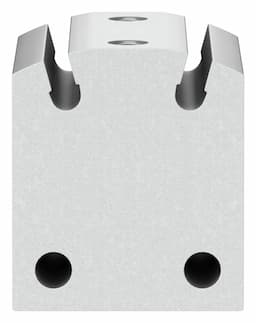

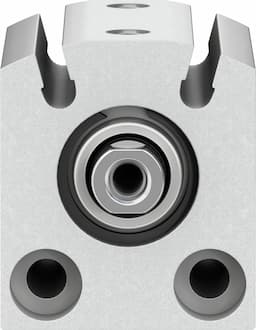

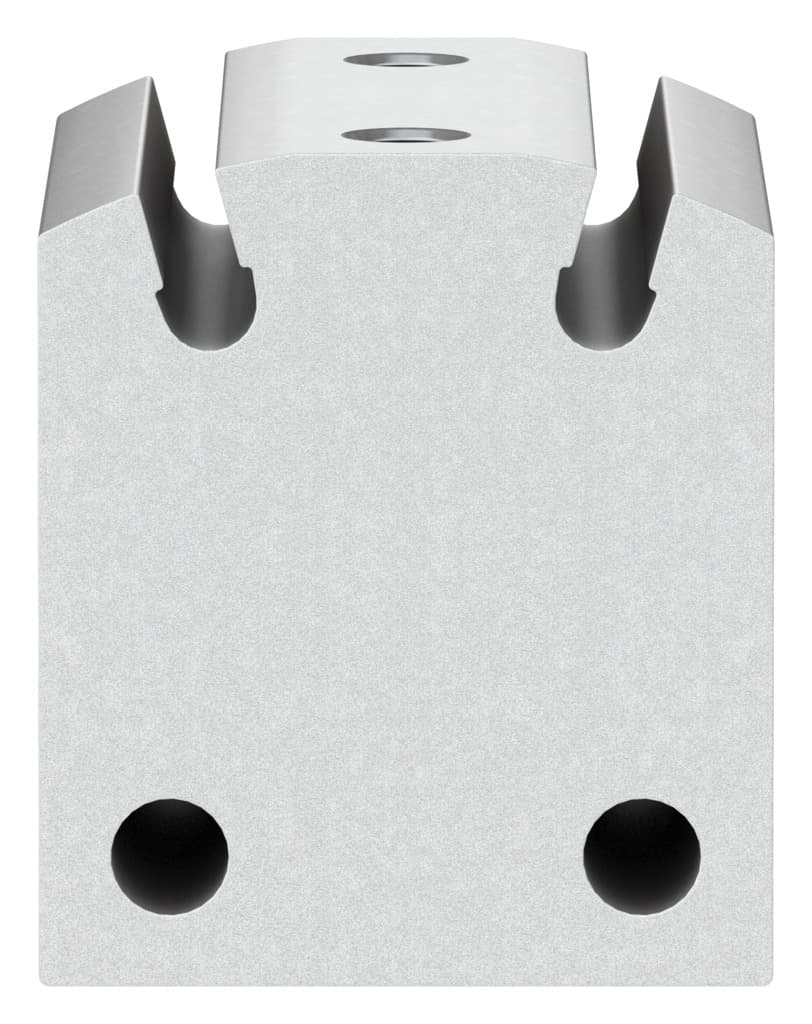

advc-16-10-i-p-a
Selling Points
- 1High Forces in Compact Size: The Festo ADVC-16-10-I-P-A delivers high forces in a compact design, ideal for applications requiring efficiency and precision.
- 2Double-Acting Functionality: This cylinder operates in both directions, providing versatility and reliability in various industrial applications.
- 3Position Sensing Capability: Equipped with proximity sensors, the ADVC-16-10-I-P-A offers precise position detection for enhanced control and accuracy.
- 4Corrosion-Resistant Materials: Constructed from corrosion-resistant materials like anodized aluminum and high-alloy steel, ensuring durability in demanding environments.
- 5Flexible Operation Options: Compatible with both lubricated and unlubricated compressed air, allowing for flexible operation in different settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, retracting | 90N | Theoretical force at 6 bar, advancing | 121N |
Moving mass | 17g | Moving mass at 0?mm stroke | 13g |
Additional moving mass per 10?mm stroke | 4g | Product weight | 87g |
Basic weight with 0?mm stroke | 69g | Additional weight per 10?mm stroke | 20g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 188109 |
Specifications may be subject to change without notice
