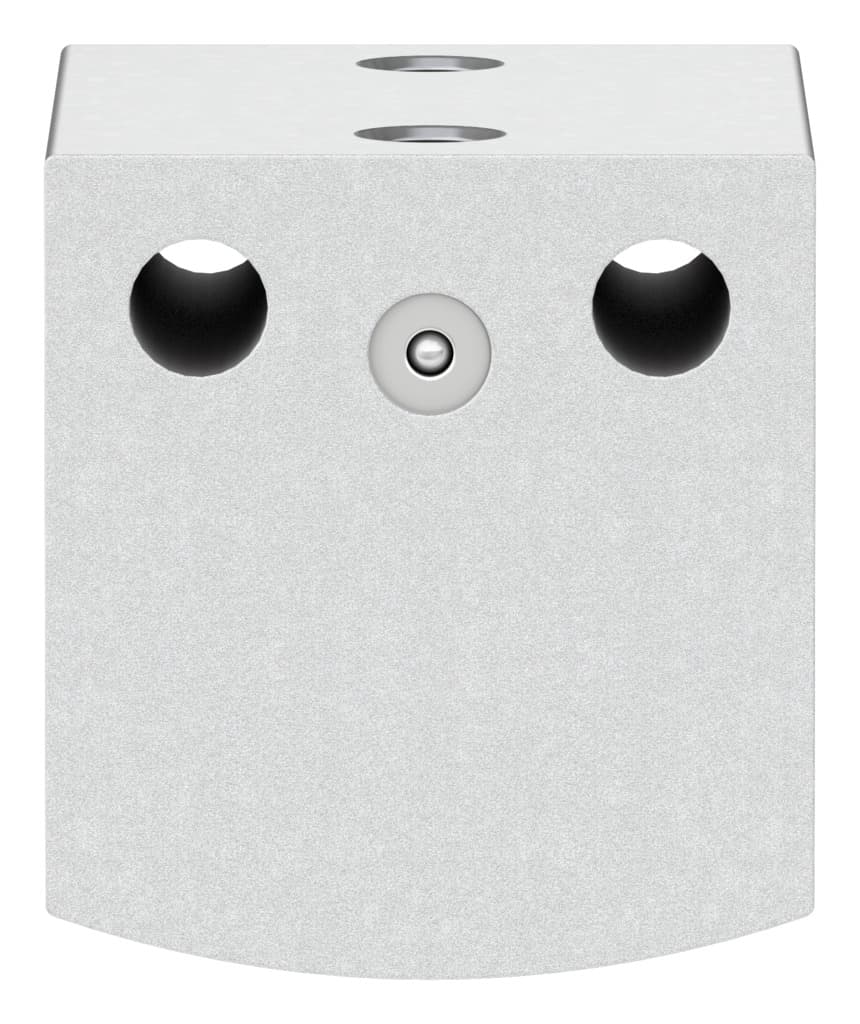

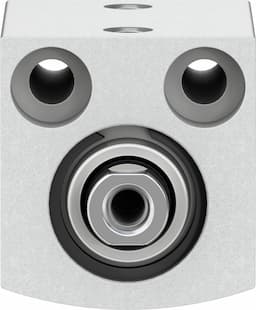

Festo ADVC-16-15-I-P Short Stroke Cylinder - High Precision and Durability

Selling Points

1The ADVC-16-15-I-P offers a compact design with a stroke length of 15 mm and a piston diameter of 16 mm.
2Equipped with elastic cushioning rings/plates at both ends for smooth operation and reduced wear.
3Designed for double-acting operation, allowing for both extension and retraction strokes.
4Made from corrosion-resistant materials, including wrought aluminum alloy and high-alloy steel, ensuring durability in various environments.
5Available for mounting with through-holes or accessories, providing flexibility in installation options.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	15mm	Piston diameter	16 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	None	Symbol	00991227
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	90N	Theoretical force at 6 bar, advancing	121N
Moving mass	15g	Moving mass at 0?mm stroke	9g
Additional moving mass per 10?mm stroke	4g	Product weight	55g
Basic weight with 0?mm stroke	36g	Additional weight per 10?mm stroke	14g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188115

Specifications may be subject to change without notice
