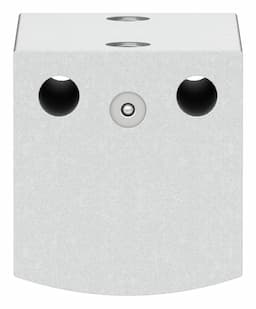

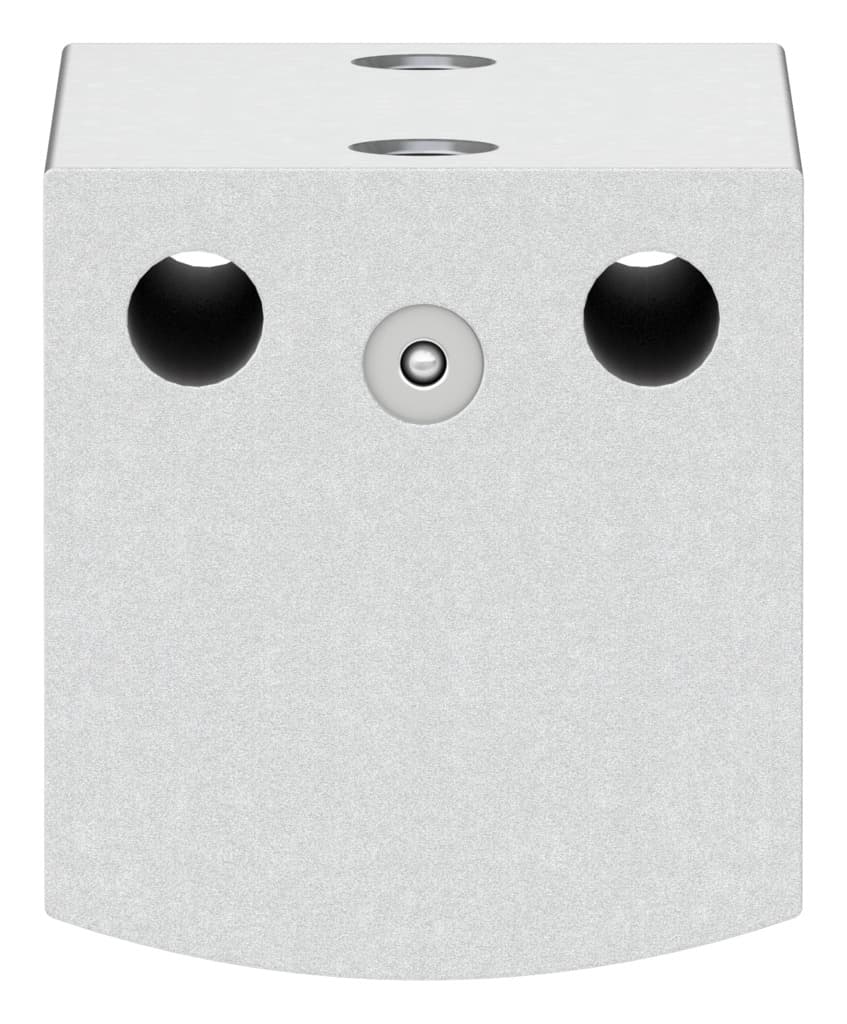

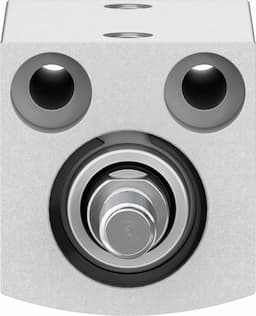

Festo ADVC-16-20-A-P Short-Stroke Cylinder - High Performance and Reliability

Selling Points

1The ADVC-16-20-A-P delivers a theoretical force of 90 N at 6 bar, ensuring robust performance in your applications.
2Built with high-alloy steel piston rods and anodized aluminum housing, this cylinder withstands demanding industrial conditions.
3Designed for double-acting operation with compressed air as per ISO 8573-1:2010, it provides smooth and reliable movement.
4Equipped with NBR and TPE-U(PU) seals, offering excellent durability and resistance to various operating pressures.
5Available with 1–4 day delivery options, ensuring you get the parts you need promptly to maintain your production schedule.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	20mm	Piston diameter	16 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	None	Symbol	00991227
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	90N	Theoretical force at 6 bar, advancing	121N
Moving mass	17g	Moving mass at 0?mm stroke	9g
Additional moving mass per 10?mm stroke	4g	Product weight	66g
Basic weight with 0?mm stroke	36g	Additional weight per 10?mm stroke	14g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188126

Specifications may be subject to change without notice
