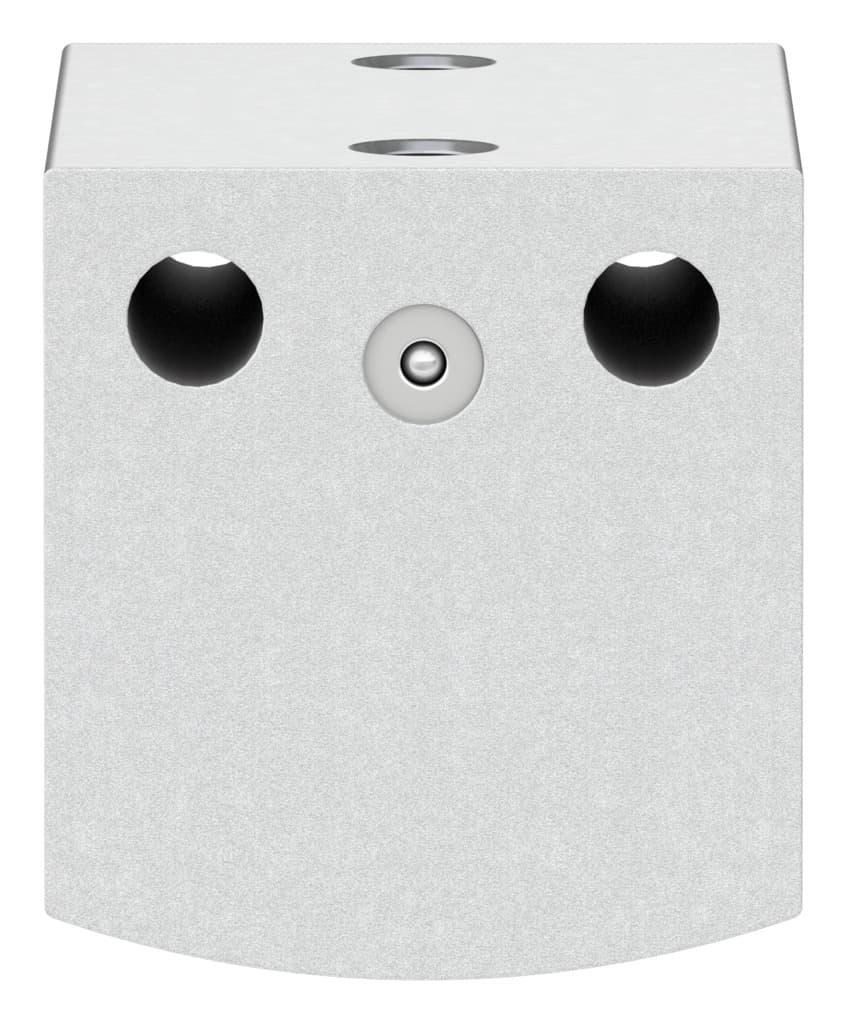

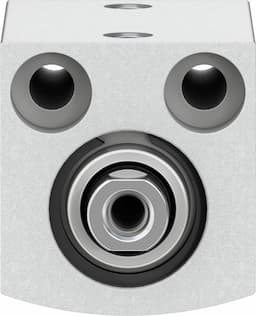

Festo ADVC-16-20-I-P Short-Stroke Cylinder - High Precision & Durability

Selling Points

1High Precision & Durability: Built with wrought aluminum alloy housing and high-alloy steel piston rod for robust performance.
2Flexible Cushioning: Equipped with elastic cushioning rings/plates at both ends for smooth operation and reduced wear.
3Compact Design: Compact size with a stroke of 20 mm and piston diameter of 16 mm, perfect for space-constrained applications.
4Double-Acting Capability: Designed for double-acting operations, offering precise control in both advancing and retracting strokes.
5Compliant with ISO Standards: Meets ISO 8573-1:2010 standards for compressed air quality, ensuring reliable performance in various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	20mm	Piston diameter	16 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	None	Symbol	00991227
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	90N	Theoretical force at 6 bar, advancing	121N
Moving mass	17g	Moving mass at 0?mm stroke	9g
Additional moving mass per 10?mm stroke	4g	Product weight	63g
Basic weight with 0?mm stroke	36g	Additional weight per 10?mm stroke	14g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188116

Specifications may be subject to change without notice
