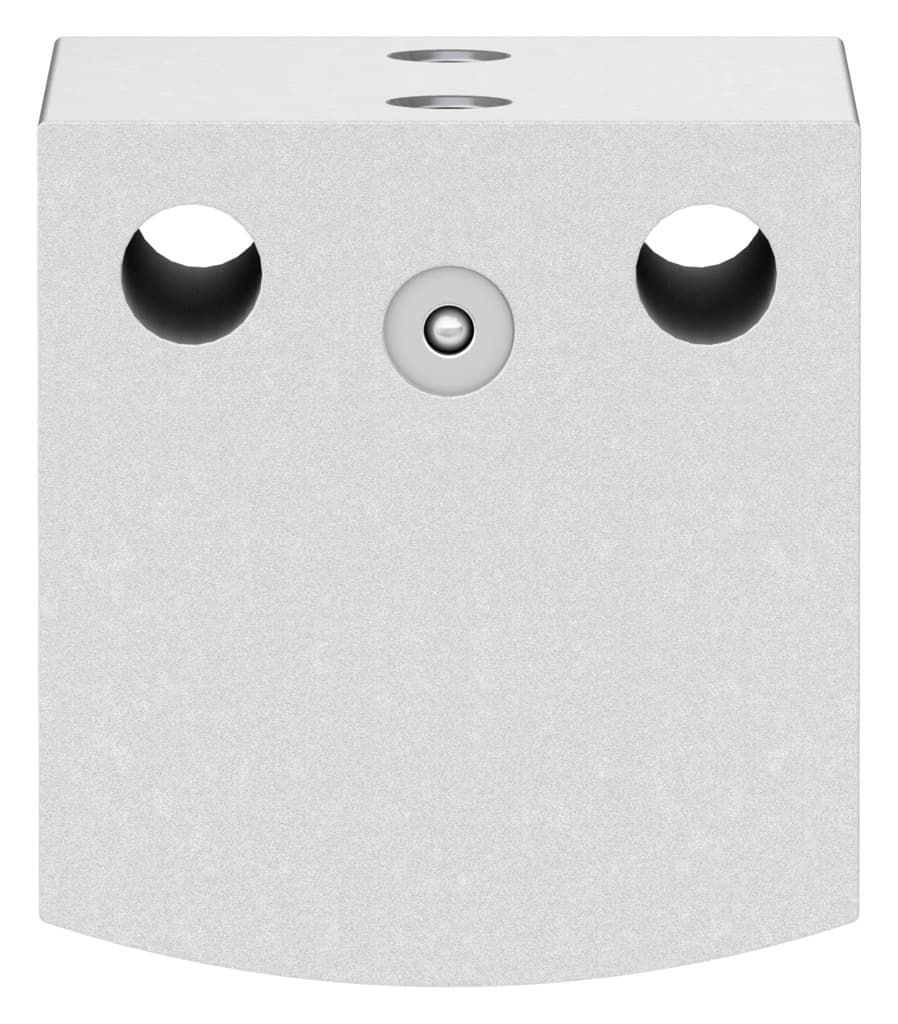

Festo ADVC-20-10-A-P Short Stroke Cylinder - High Precision and Versatility

Selling Points

1High Precision: Designed with elastic cushioning rings for smooth operation and precise control.
2Double Acting: Enables both advancing and retracting movements, enhancing versatility in applications.
3Versatile Mounting: Can be mounted via through-holes or accessories, allowing for flexible installation.
4Corrosion Resistance: Features a corrosion-resistant class of 1, suitable for low-corrosion environments.
5Wide Operating Range: Operates effectively in temperatures from -20°C to +80°C and pressures from 1 to 10 bar.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	20 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	None	Symbol	00991227
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	141N	Theoretical force at 6 bar, advancing	189N
Moving mass	25g	Moving mass at 0?mm stroke	19g
Additional moving mass per 10?mm stroke	6g	Product weight	95g
Basic weight with 0?mm stroke	67g	Additional weight per 10?mm stroke	26g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188156
