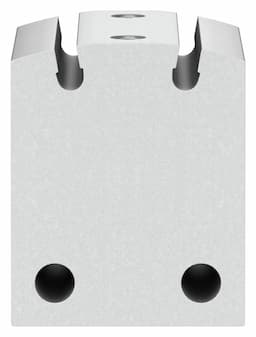

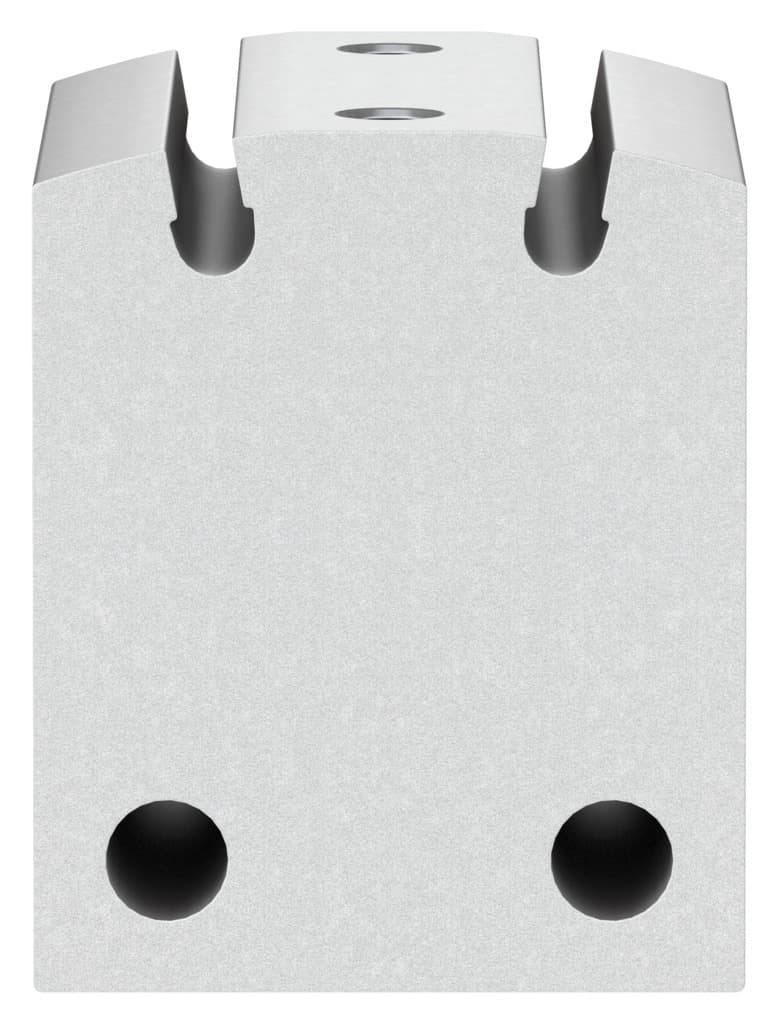

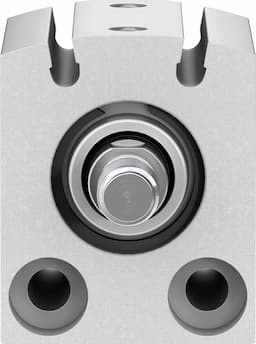

Festo ADVC-20-10-A-P-A Short Stroke Cylinder - High Precision & Reliability

Selling Points

1High Precision & Reliability: Designed for precise applications with a 10 mm stroke and 20 mm piston diameter.
2Double-Acting Operation: Capable of advancing and retracting, ensuring efficient movement in various mechanisms.
3Elastic Cushioning: Equipped with elastic cushioning rings/pads at both ends for smooth operation and reduced wear.
4Low Corrosion Resistance: Constructed with a low corrosion resistance class (CRC 1) for durability in various environments.
5Compliant with ISO Standards: Operates with compressed air to ISO 8573-1:2010 [7:4:4] for consistent performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	20 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	141N	Theoretical force at 6 bar, advancing	189N
Moving mass	29g	Moving mass at 0?mm stroke	23g
Additional moving mass per 10?mm stroke	6g	Product weight	134g
Basic weight with 0?mm stroke	105g	Additional weight per 10?mm stroke	30g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188151

Specifications may be subject to change without notice
