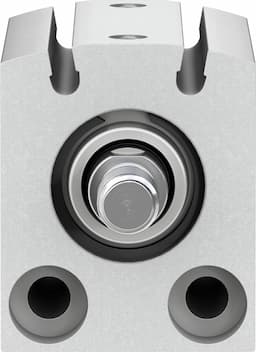

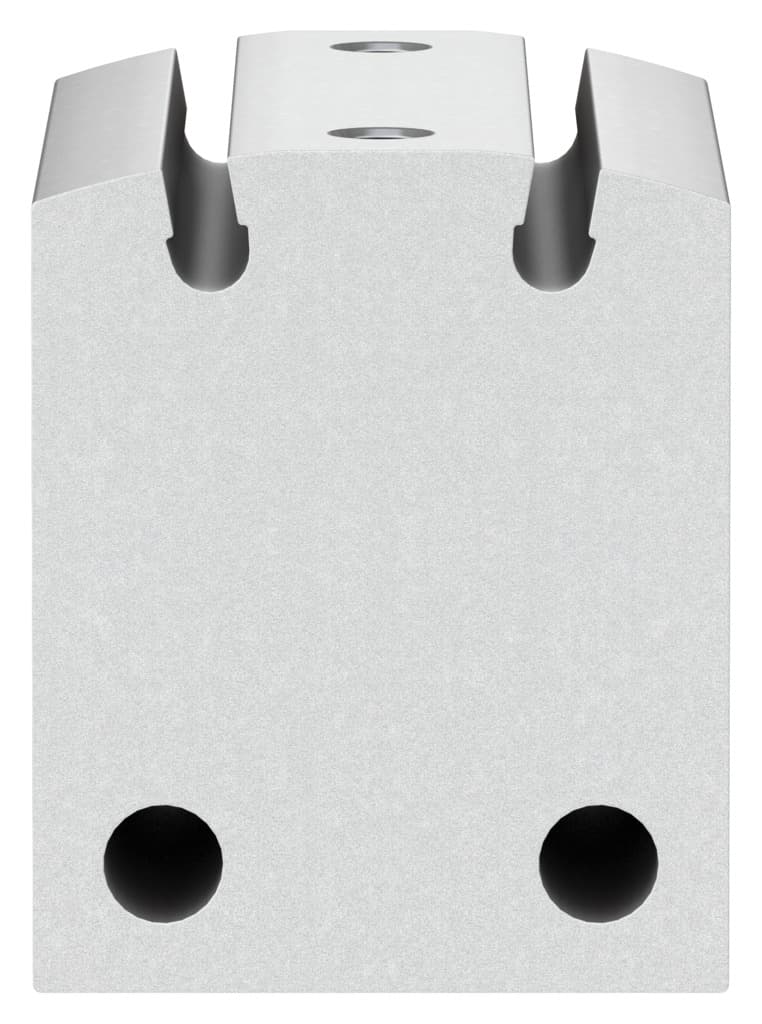

Festo ADVC-20-20-A-P-A Short Stroke Cylinder | High-Performance Pneumatic Solution

Selling Points

1High-Performance Pneumatic Application: Ideal for compressed air operations up to 10 bar.
2Elastic Cushioning: Equipped with elastic cushioning rings/pads at both ends for smooth operation.
3Low Corrosion Resistance: Features a corrosion resistance class of CRC 1, ensuring durability in various environments.
4Versatile Mounting Options: Can be mounted via through-hole or with accessories, offering flexibility in installation.
5Double-Acting Design: Supports both retracting and advancing strokes, enhancing operational efficiency.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	20mm	Piston diameter	20 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	141N	Theoretical force at 6 bar, advancing	189N
Moving mass	35g	Moving mass at 0?mm stroke	23g
Additional moving mass per 10?mm stroke	6g	Product weight	160g
Basic weight with 0?mm stroke	105g	Additional weight per 10?mm stroke	30g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188153

Specifications may be subject to change without notice
