Product Model

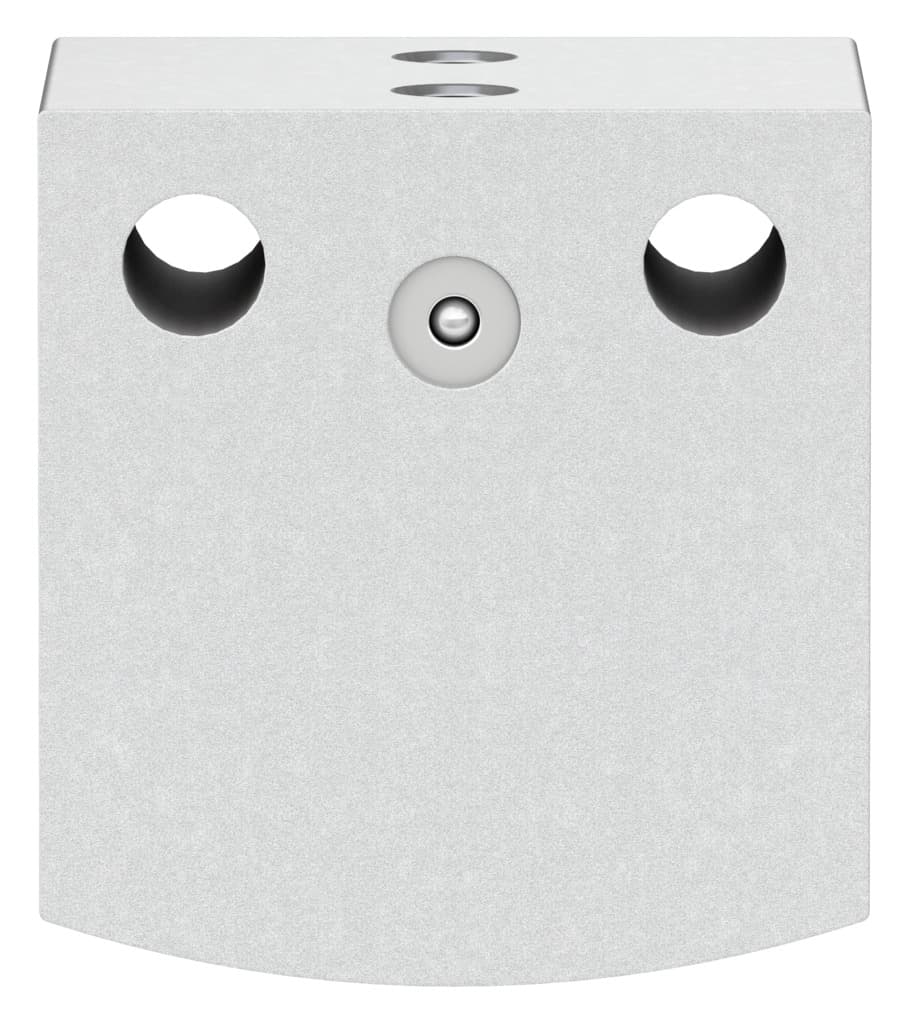

advc-20-5-a-p
Selling Points
- 1High Precision and Control: The ADVC-20-5-A-P offers a precise 5mm stroke and 20mm piston diameter for accurate movement control.
- 2Double-Acting Operation: Designed for both advancing and retracting operations, ensuring efficient and reliable performance.
- 3Low Corrosion Stress: With a corrosion resistance class of CRC 1, this cylinder is suitable for applications requiring minimal corrosion impact.
- 4Compliant with ISO Standards: Meets ISO 8573-1:2010 standards for compressed air quality, ensuring reliable operation in various environments.
- 5Durable Construction: Made from high-quality materials including wrought aluminum alloy housing and high-alloy steel piston rod for durability and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 20 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod |
Position sensing | None | Symbol | 00991227 |
Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, retracting | 141N | Theoretical force at 6 bar, advancing | 189N |
Moving mass | 22g | Moving mass at 0?mm stroke | 19g |
Additional moving mass per 10?mm stroke | 6g | Product weight | 80g |
Basic weight with 0?mm stroke | 67g | Additional weight per 10?mm stroke | 26g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 188155 |
Specifications may be subject to change without notice
