Product Model

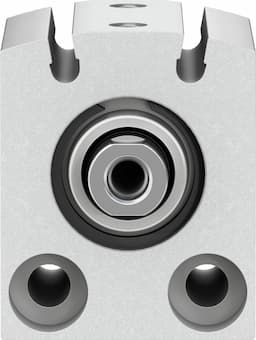

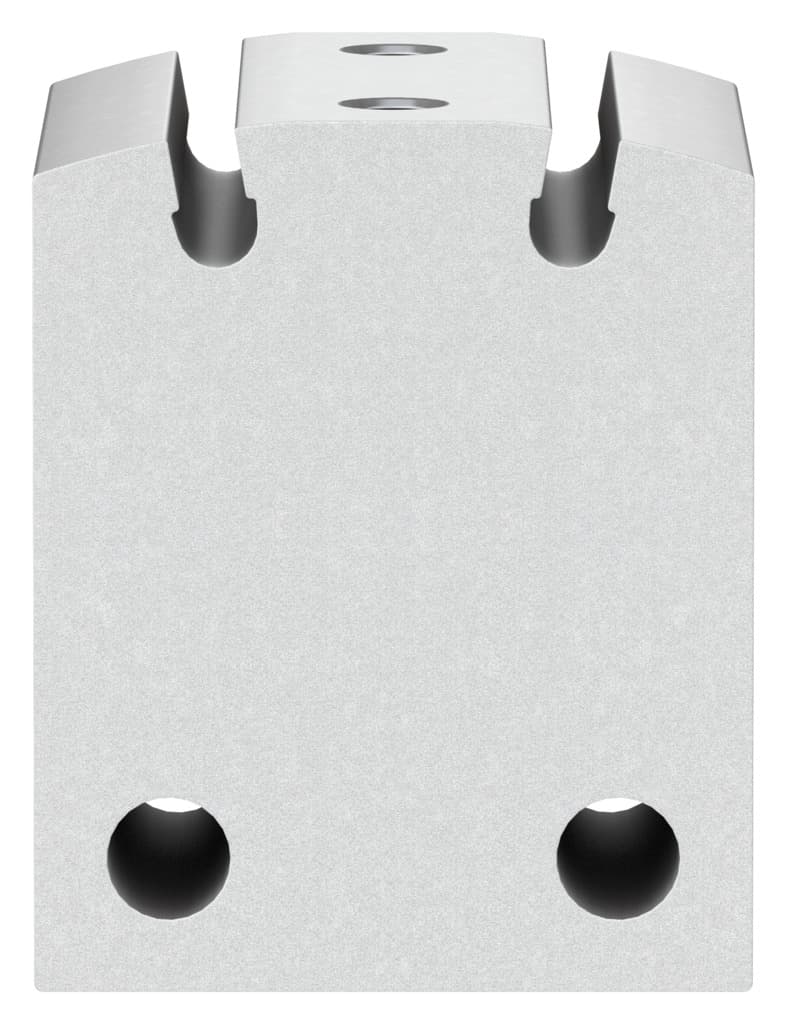

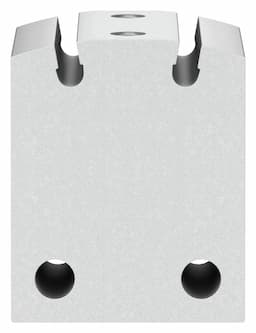

advc-20-5-i-p-a
Selling Points
- 1Compact and lightweight design with a weight of 114g.
- 2Suitable for double-acting operations with a piston diameter of 20mm.
- 3Operates with compressed air as per ISO 8573-1:2010 [7:4:4] for reliable performance.
- 4Features elastic cushioning rings/pads at both ends for smooth operation.
- 5Corrosion resistance class 1 ensures durability in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 20 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, retracting | 141N | Theoretical force at 6 bar, advancing | 189N |
Moving mass | 26g | Moving mass at 0?mm stroke | 23g |
Additional moving mass per 10?mm stroke | 6g | Product weight | 114g |
Basic weight with 0?mm stroke | 105g | Additional weight per 10?mm stroke | 30g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 188140 |
Specifications may be subject to change without notice
