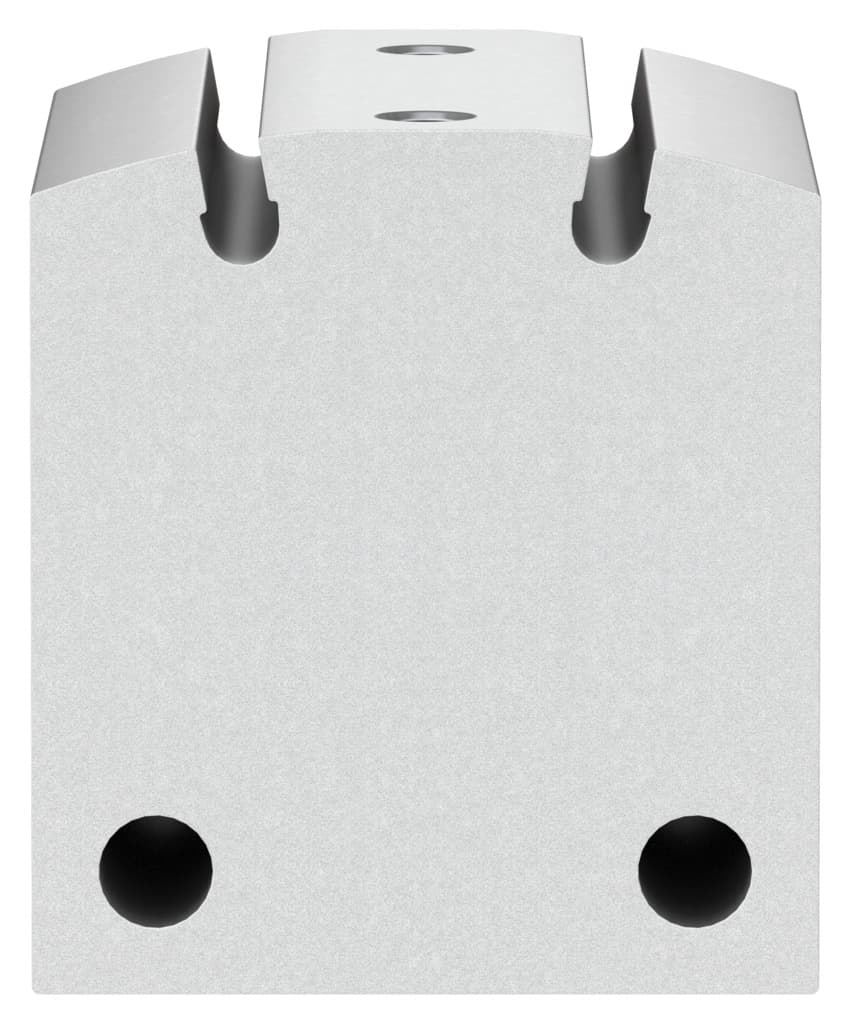

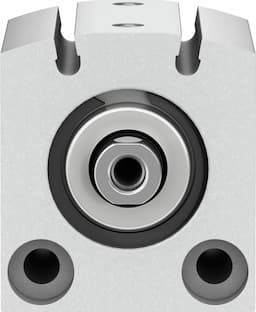

Festo ADVC-25-15-I-P-A Short-Stroke Cylinder | High-Performance Pneumatic Solution

Selling Points

1Equipped with flexible cushioning rings at both ends for enhanced durability and smooth operation.
2Designed for double-acting applications, providing precise control in both retracting and advancing strokes.
3Ideal for proximity sensing applications, featuring a piston-rod end with a female thread.
4Compatible with operating pressures from 1 to 10 bar, ensuring versatility in various industrial settings.
5Classified as CRC 1, indicating low corrosion stress, making it suitable for use in environments with moderate corrosive conditions.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	15mm	Piston diameter	25 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	247N	Theoretical force at 6 bar, advancing	295N
Moving mass	38g	Moving mass at 0?mm stroke	29g
Additional moving mass per 10?mm stroke	6g	Product weight	177g
Basic weight with 0?mm stroke	134g	Additional weight per 10?mm stroke	34g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188174

Specifications may be subject to change without notice
