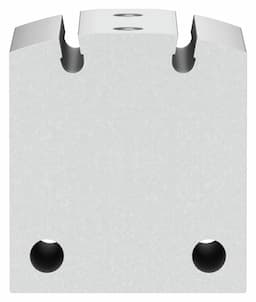

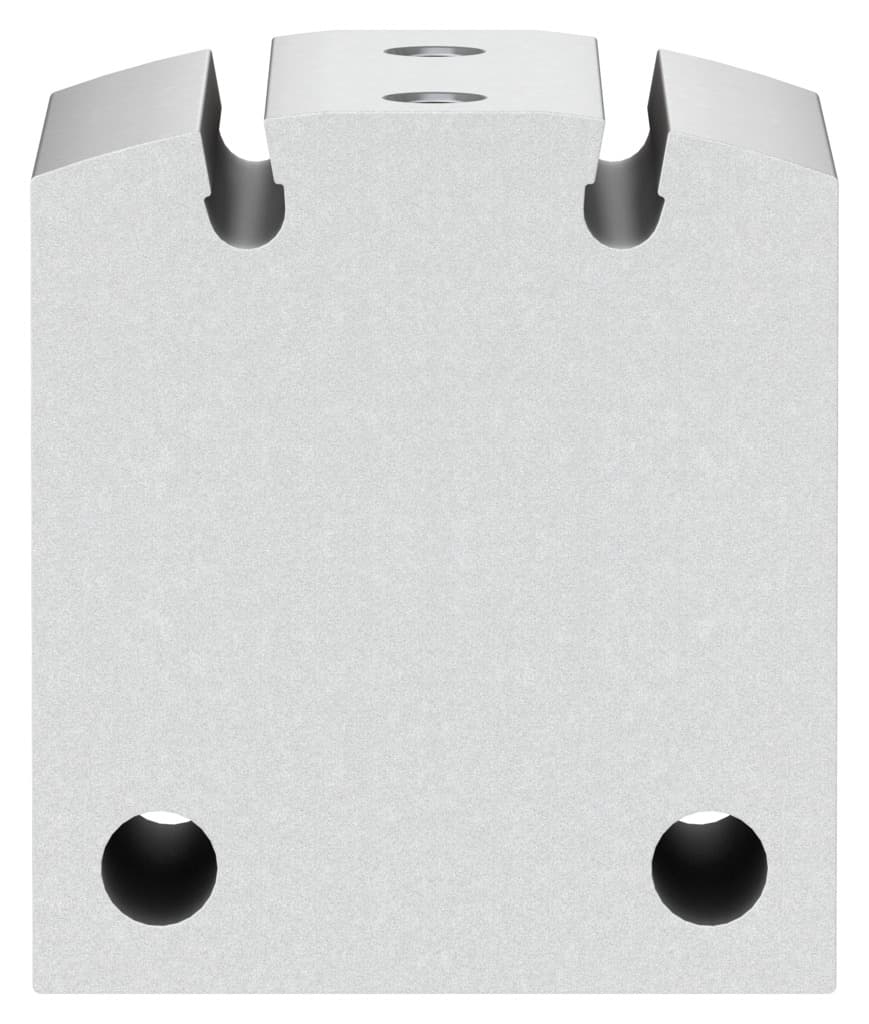

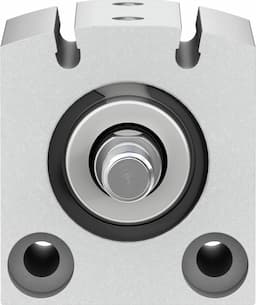

Festo ADVC-25-5-A-P-A Short Stroke Cylinder - High Precision & Durability

Selling Points

1High Precision & Durability: Built with high-alloy steel piston rod for long-lasting reliability.
2Elastic Cushioning: Equipped with elastic cushioning rings/plates at both ends for smooth operation.
3Double-Acting Operation: Designed for double-acting mode, providing consistent force in both directions.
4Low Corrosion Stress: Meets corrosion resistance class CRC 1, ensuring minimal corrosion impact.
5Versatile Mounting Options: Can be mounted via through-hole or with accessories, offering flexibility in installation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	25 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	247N	Theoretical force at 6 bar, advancing	295N
Moving mass	32g	Moving mass at 0?mm stroke	29g
Additional moving mass per 10?mm stroke	6g	Product weight	151g
Basic weight with 0?mm stroke	134g	Additional weight per 10?mm stroke	34g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188182

Specifications may be subject to change without notice
