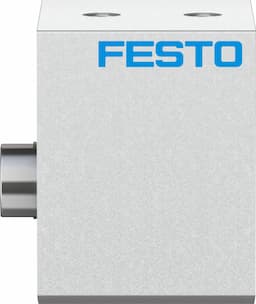

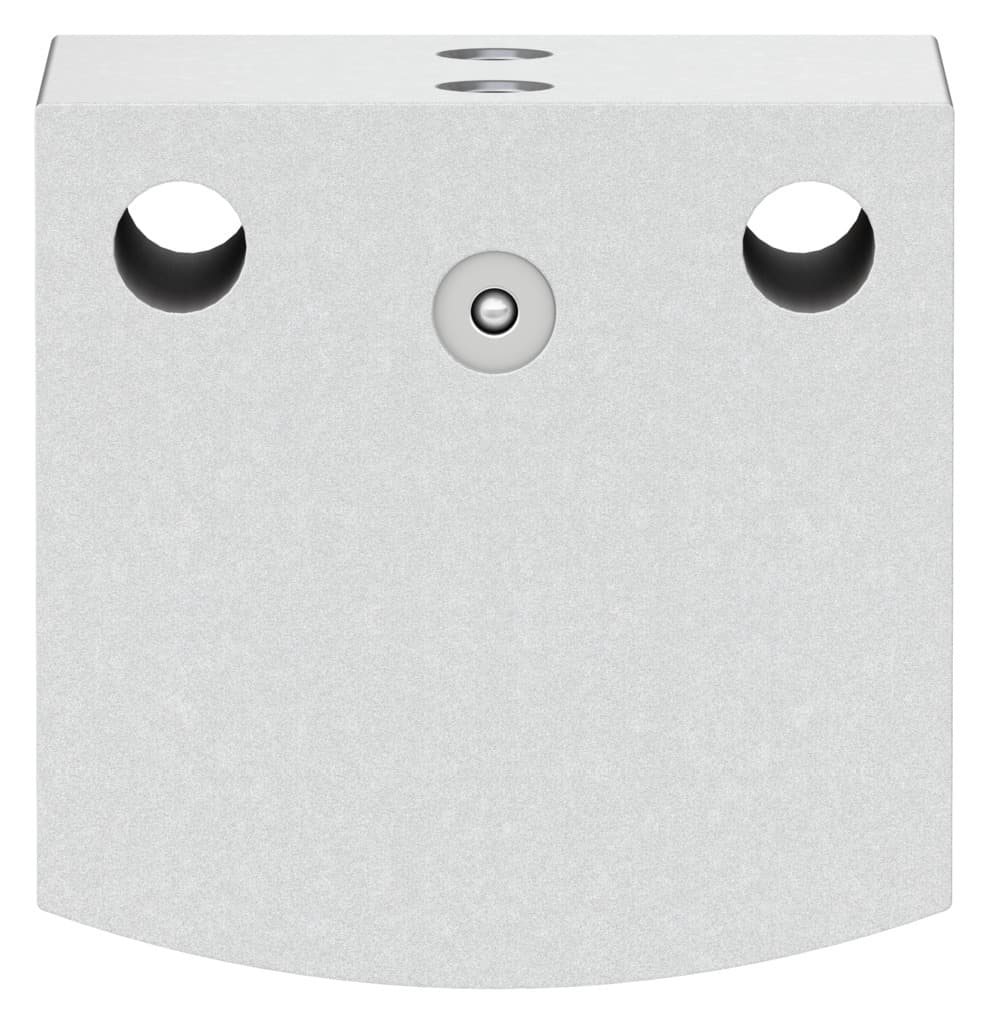

Festo ADVC-25-5-I-P Short Stroke Cylinder - High Precision and Reliability

Selling Points

1High Precision and Reliability: The ADVC-25-5-I-P cylinder ensures precise control and reliable performance in various pneumatic applications.
2Double Acting Operation: Designed for double-acting operations, this cylinder provides balanced force in both retracting and advancing modes.
3Elastic Cushioning Rings: Equipped with elastic cushioning rings at both ends for smooth operation and reduced wear.
4Corrosion Resistance: Features a low corrosion stress design (CRC 1) for durability in harsh environments.
5Compact Design: Offers a compact design with a small footprint, making it ideal for space-constrained applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	25 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	None	Symbol	00991227
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	247N	Theoretical force at 6 bar, advancing	295N
Moving mass	27g	Moving mass at 0?mm stroke	24g
Additional moving mass per 10?mm stroke	6g	Product weight	96g
Basic weight with 0?mm stroke	88g	Additional weight per 10?mm stroke	28g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188177

Specifications may be subject to change without notice
