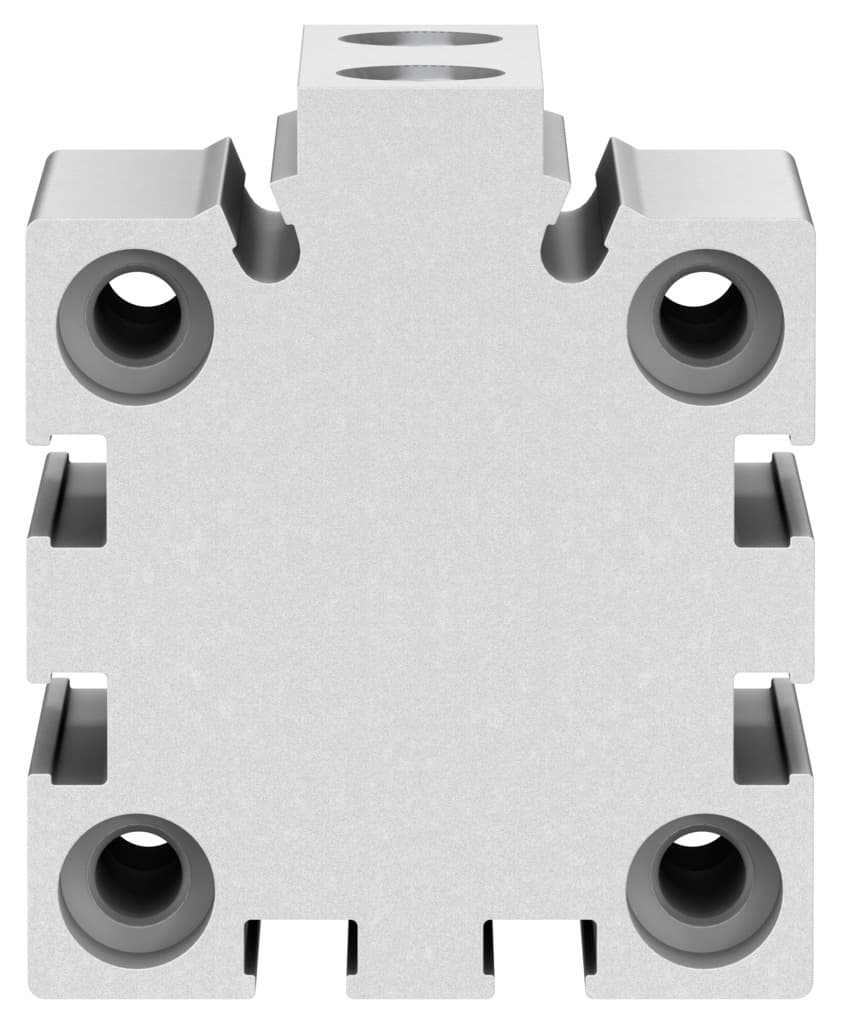

Festo ADVC-32-10-A-P Short-Stroke Cylinder | High-Quality Pneumatic Cylinders

Selling Points

1Precise Control: Double-acting operation with elastic cushioning rings for smooth motion.
2Durable Construction: Built with wrought aluminum alloy and anodized for corrosion resistance.
3Versatile Mounting: Can be mounted via through-hole with accessories selectively.
4Wide Operating Range: Compatible with compressed air (ISO 8573-1:2010) and operating pressure from 1 to 10 bar.
5Compact Design: 10mm stroke and 32mm piston diameter for efficient use in various industrial settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	32 mm
Based on norm	ISO 6431 Hole pattern VDMA 24562	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Piston Piston rod	Position sensing	None
Symbol	00991227	Operating pressure	14.5psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	415N
Theoretical force at 6 bar, advancing	483N	Moving mass	51g
Moving mass at 0?mm stroke	41g	Additional moving mass per 10?mm stroke	10g
Product weight	193g	Basic weight with 0?mm stroke	155g
Additional weight per 10?mm stroke	82g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	NBR TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188220

Specifications may be subject to change without notice
