Product Model

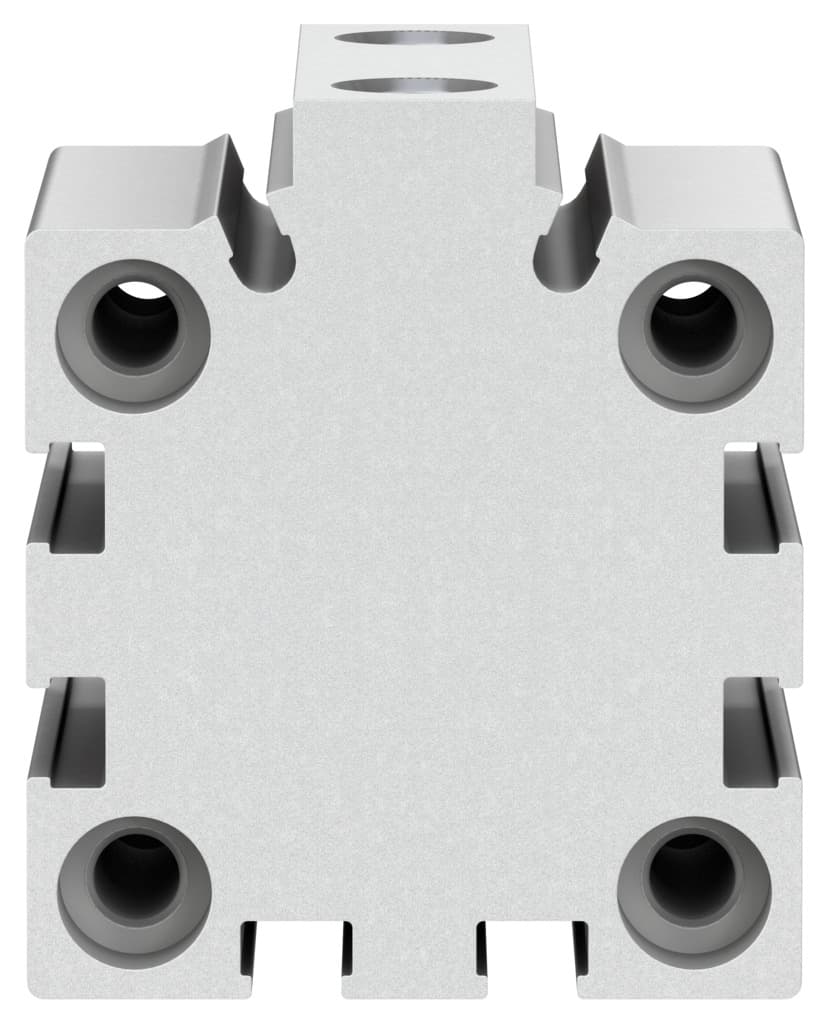

advc-32-15-a-p-a
Selling Points
- 1Engineered for precise movements with minimal backlash.
- 2Suitable for both advancing and returning strokes.
- 3Equipped with elastic silencer rings/plates for smooth operation.
- 4Low corrosion stress class (CRC 1) ensures durability in various environments.
- 5Compact size with a stroke length of 15 mm and a piston diameter of 32 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 32 mm |
Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991217 | Operating pressure | 14.5psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 415N |
Theoretical force at 6 bar, advancing | 483N | Moving mass | 60g |
Moving mass at 0?mm stroke | 45g | Additional moving mass per 10?mm stroke | 10g |
Product weight | 225g | Basic weight with 0?mm stroke | 166g |
Additional weight per 10?mm stroke | 90g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188216 |
