Product Model

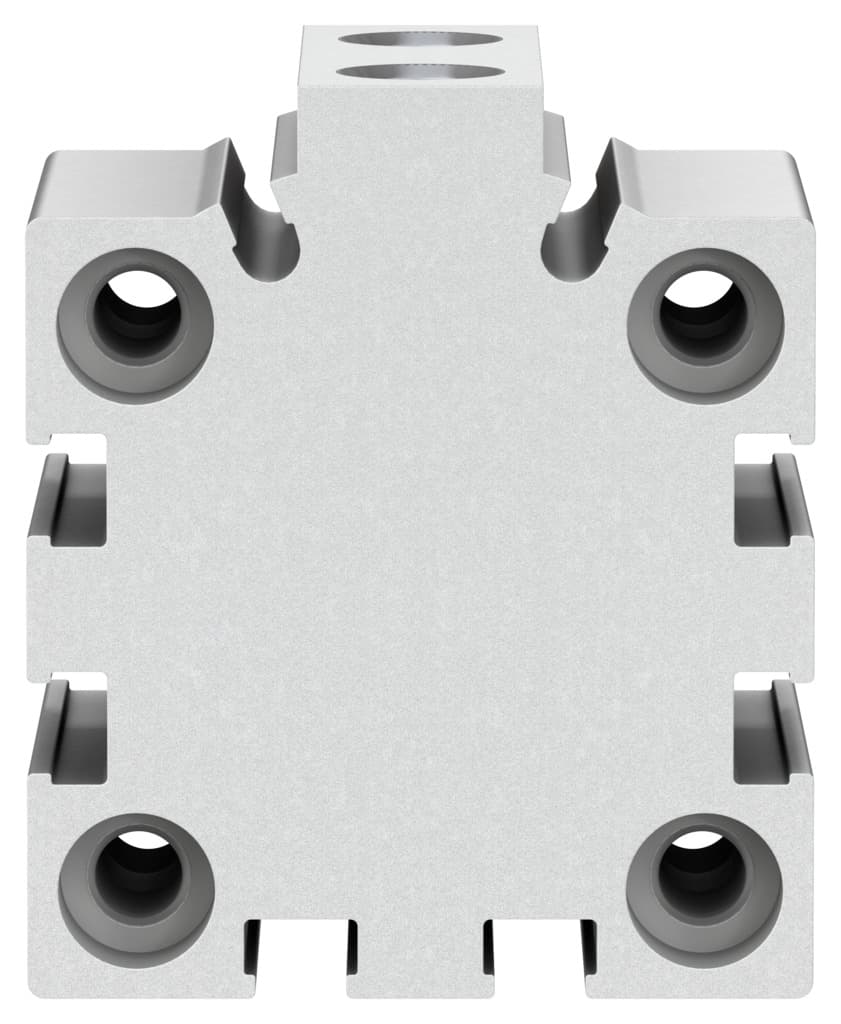

advc-32-5-a-p-a
Selling Points
- 1High Theoretical Forces: The ADVC-32-5-A-P-A delivers 415 N of theoretical force at 6 bar during the return stroke and 483 N during the advance stroke.
- 2Elastic Cushioning: Equipped with elastic cushioning rings/pads at both ends for smooth operation and reduced wear.
- 3Durable Materials: Constructed with high-alloy steel piston rods and anodized wrought aluminum alloy housing for corrosion resistance.
- 4Versatile Mounting Options: Can be mounted via through-hole or with accessories, offering flexibility in installation.
- 5Compliant with ISO Standards: Operates with compressed air to ISO 8573-1:2010 [7:4:4] and meets VDMA24364-B1/B2-L standards for low corrosion stress.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 32 mm |
Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991217 | Operating pressure | 14.5psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 415N |
Theoretical force at 6 bar, advancing | 483N | Moving mass | 50g |
Moving mass at 0?mm stroke | 45g | Additional moving mass per 10?mm stroke | 10g |
Product weight | 184g | Basic weight with 0?mm stroke | 166g |
Additional weight per 10?mm stroke | 90g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188214 |
Specifications may be subject to change without notice
