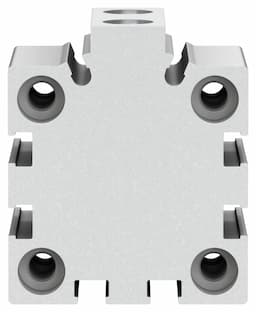

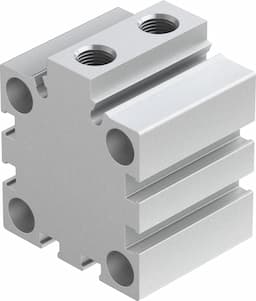

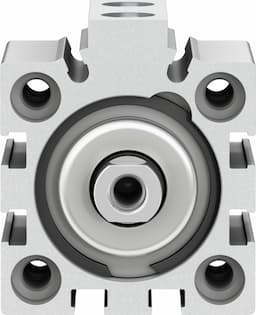

Festo ADVC-32-5-I-P-A Short-Stroke Cylinder - High Precision & Durability

Selling Points

1High Precision Design: Engineered for precise control and reliable operation.
2Flexible Cushioning: Equipped with elastic cushioning rings/pads at both ends for smooth movement.
3Low Corrosion Resistance: Classified as CRC 1, suitable for applications with low corrosion stress.
4Compressed Air Operation: Compatible with compressed air according to ISO 8573-1:2010 [7:4:4].
5Versatile Mounting Options: Can be mounted via through-hole with various accessories available.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	32 mm
Based on norm	ISO 6431 Hole pattern VDMA 24562	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991217	Operating pressure	14.5psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	415N
Theoretical force at 6 bar, advancing	483N	Moving mass	50g
Moving mass at 0?mm stroke	45g	Additional moving mass per 10?mm stroke	10g
Product weight	168g	Basic weight with 0?mm stroke	166g
Additional weight per 10?mm stroke	90g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188204

Specifications may be subject to change without notice
