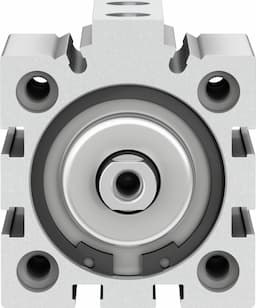

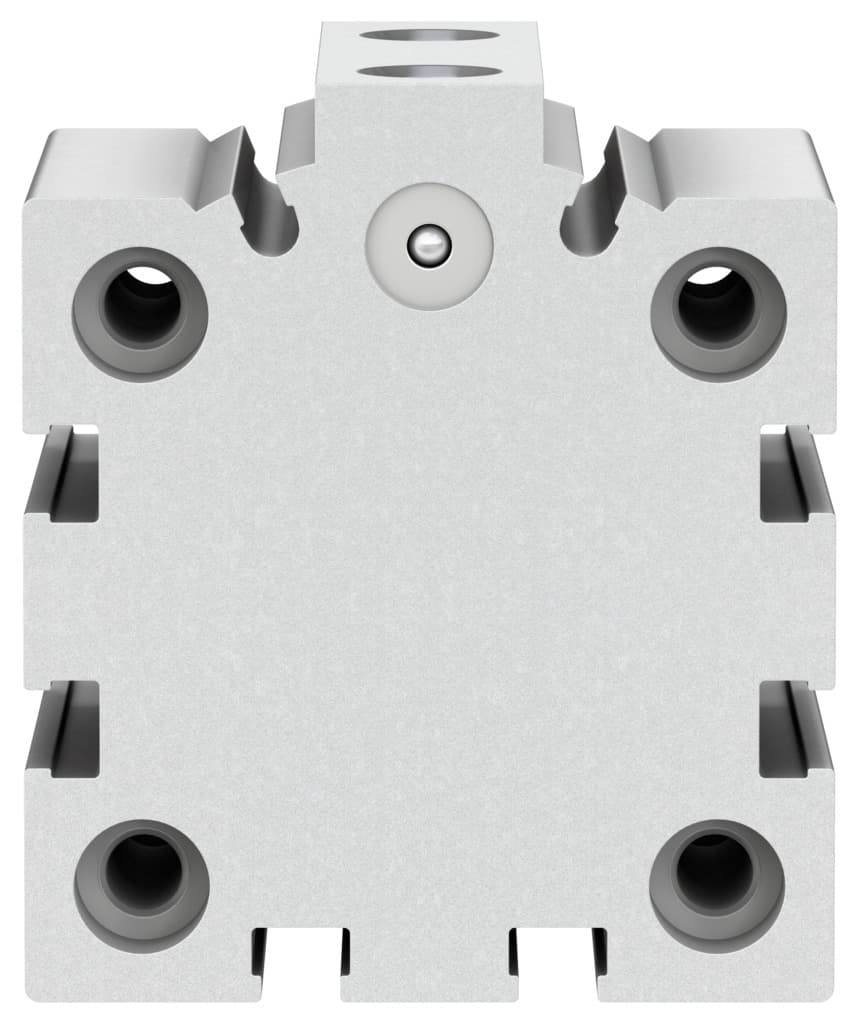

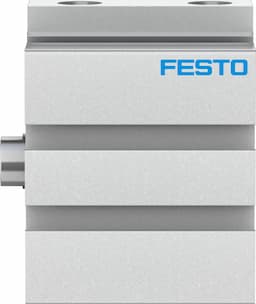

Product Model
advc-40-10-i-p-a
Selling Points
- 1Compact Design: 10mm stroke and 40mm piston diameter for precise applications.
- 2Elastic Cushioning: Flexible cushioning rings/plates at both ends for smooth operation.
- 3Double-Acting: Operates in both directions, enhancing versatility in automation systems.
- 4G1/8 Pneumatic Connection: Easy integration with various pneumatic systems.
- 5Low Corrosion Stress: Corrosion resistance class CRC 1 ensures durability in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 40 mm |
Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991217 | Operating pressure | 14.5psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 686N |
Theoretical force at 6 bar, advancing | 754N | Moving mass | 71g |
Moving mass at 0?mm stroke | 61g | Additional moving mass per 10?mm stroke | 10g |
Product weight | 305g | Basic weight with 0?mm stroke | 275g |
Additional weight per 10?mm stroke | 26g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188233 |
Specifications may be subject to change without notice
