Product Model

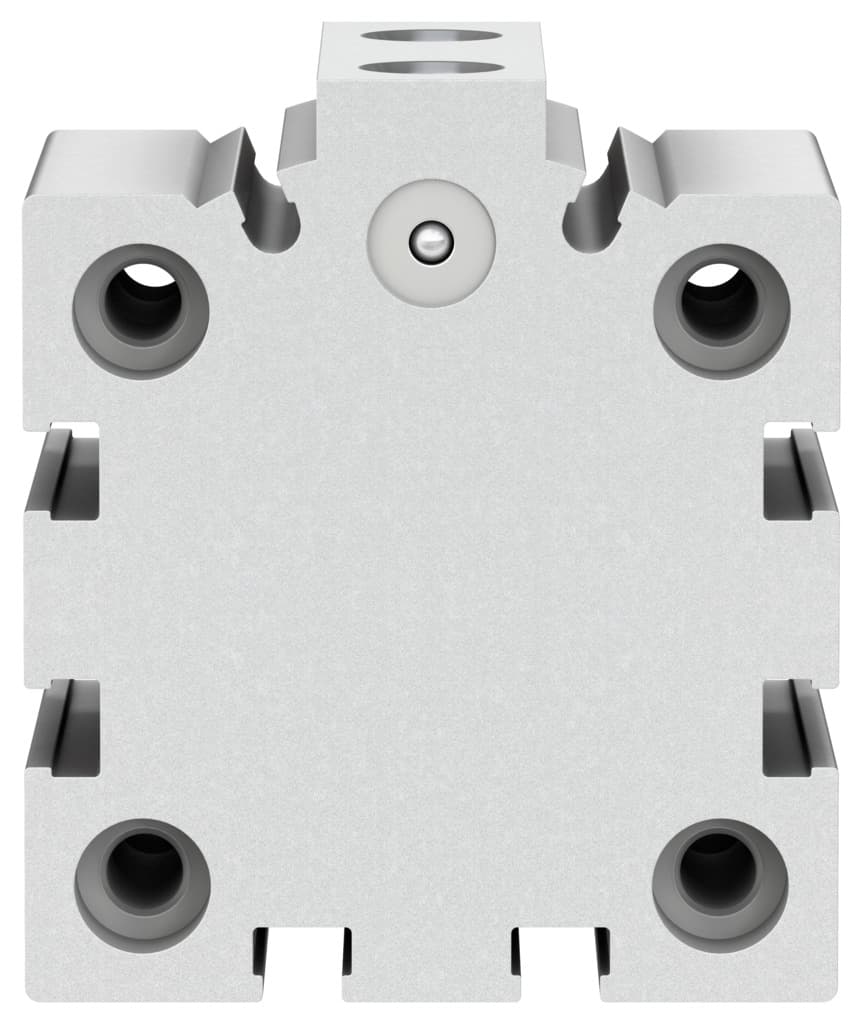

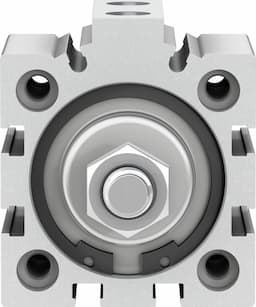

advc-40-15-a-p
Selling Points
- 1Engineered with precision for reliable performance in industrial applications.
- 2Equipped with elastic cushioning rings/pads at both ends for smooth operation.
- 3Offers a compact design with a stroke of 15 mm and piston diameter of 40 mm.
- 4Can be mounted via through-hole or accessories, providing flexibility in installation.
- 5Available for delivery within 1–4 days, ensuring timely project completion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 40 mm |
Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | None |
Symbol | 00991227 | Operating pressure | 14.5psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 686N |
Theoretical force at 6 bar, advancing | 754N | Moving mass | 79g |
Moving mass at 0?mm stroke | 64g | Additional moving mass per 10?mm stroke | 10g |
Product weight | 290g | Basic weight with 0?mm stroke | 226g |
Additional weight per 10?mm stroke | 28g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188249 |
Specifications may be subject to change without notice
