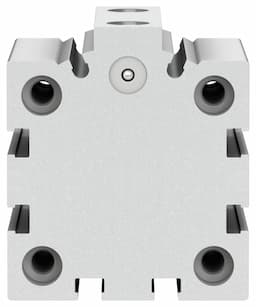

Festo ADVC-40-15-A-P-A Short-Stroke Cylinder | High-Quality Pneumatic Actuation

Selling Points

1Designed for high-precision applications with a stroke length of 15 mm and piston diameter of 40 mm.
2Equipped with elastic cushioning rings/pads at both ends for smooth operation and reduced wear.
3Capable of both advancing and retracting strokes, providing versatile functionality.
4Features a low corrosion resistance class (CRC 1) for durability in various industrial environments.
5Meets ISO 8573-1:2010 standards for compressed air quality and VDMA 24364-B1/B2-L for LABS (PWIS) conformity.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	15mm	Piston diameter	40 mm
Based on norm	ISO 6431 Hole pattern VDMA 24562	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991217	Operating pressure	14.5psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	686N
Theoretical force at 6 bar, advancing	754N	Moving mass	76g
Moving mass at 0?mm stroke	61g	Additional moving mass per 10?mm stroke	10g
Product weight	344g	Basic weight with 0?mm stroke	275g
Additional weight per 10?mm stroke	26g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188244

Specifications may be subject to change without notice
