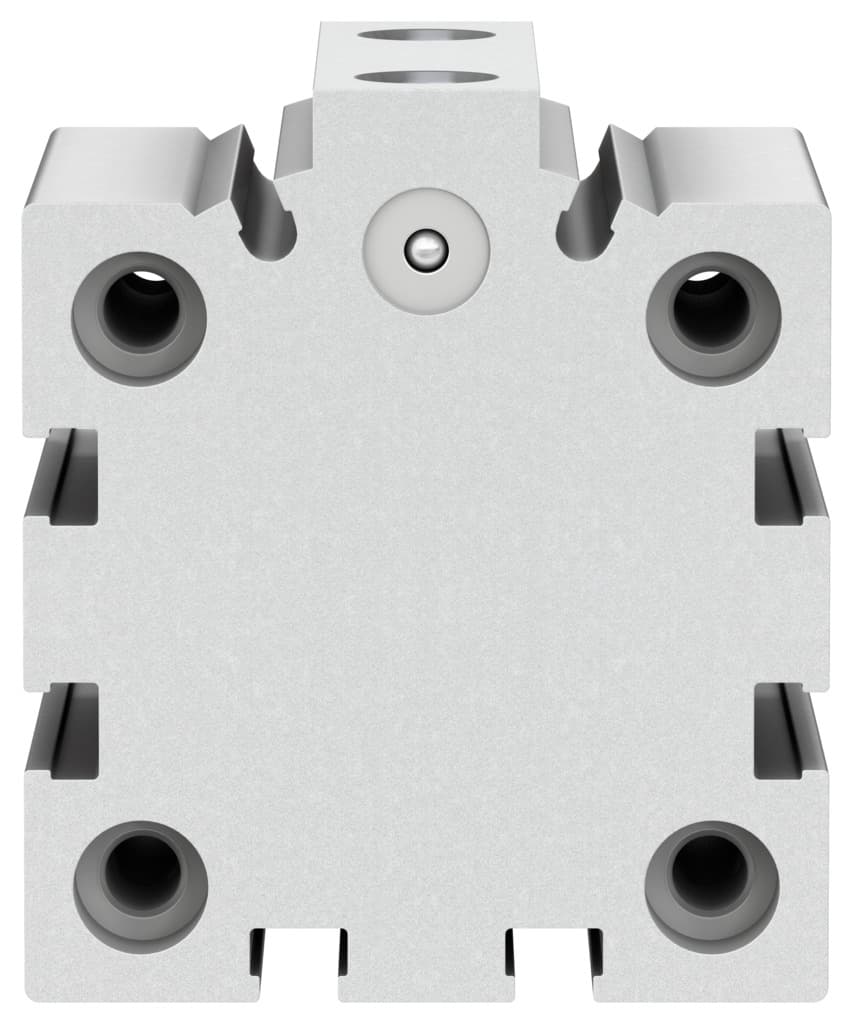

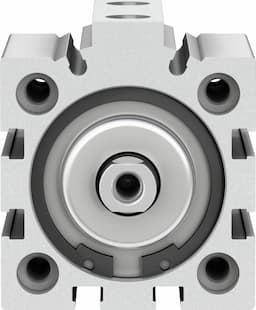

Product Model
advc-40-15-i-p-a
Selling Points
- 1High Precision and Durability: Designed with high-alloy steel piston rod and anodized aluminum housing for long-lasting operation.
- 2Double-Acting Design: Enables smooth and efficient movement in both directions, enhancing overall system performance.
- 3Elastic Cushioning Rings: Provides effective damping at both ends, reducing wear and tear on the cylinder.
- 4Compressed Air Operation: Compatible with compressed air to ISO 8573-1:2010 standards, ensuring reliable operation in various environments.
- 5Low Corrosion Stress: Meets CRC 1 corrosion resistance class, minimizing the risk of corrosion and extending the product's lifespan.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 40 mm |
Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991217 | Operating pressure | 14.5psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 686N |
Theoretical force at 6 bar, advancing | 754N | Moving mass | 76g |
Moving mass at 0?mm stroke | 61g | Additional moving mass per 10?mm stroke | 10g |
Product weight | 328g | Basic weight with 0?mm stroke | 275g |
Additional weight per 10?mm stroke | 26g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188234 |
Specifications may be subject to change without notice
